| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | TeXin |
| Certification: | CE ISO |
| Model Number: | TeXin-detector |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | durable case |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000/month |
| Detection Frequency Band: | 1.2 GHz 2400-2485MHz 5725-5850MHz(customized) | Detection Range: | 1km (antenna Gain 3 Dbi, Royal 3) |
|---|---|---|---|
| The Detection Of Empty Royal: | 360° Full Air Royal | Probe The Number: | 100 Endyceps Sinensis |
| Detection Refresh Time: | 3s | Continuous Detection Time: | It Lasts 24 Hours A Day |
| Interference Frequency Band: | Full Range (customized) | Countermeasure Distance: | Greater Than 1,000 M |
| Control Method: | Automatic Strike | Size: | 60*55*27cm |
| Weight: | 35kg |

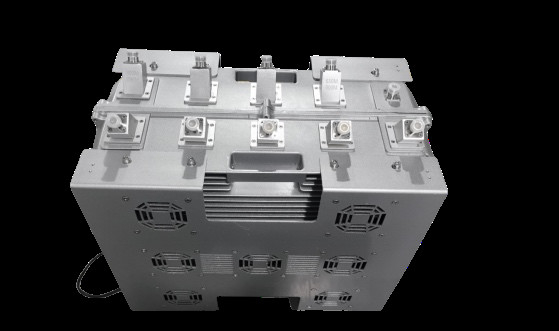

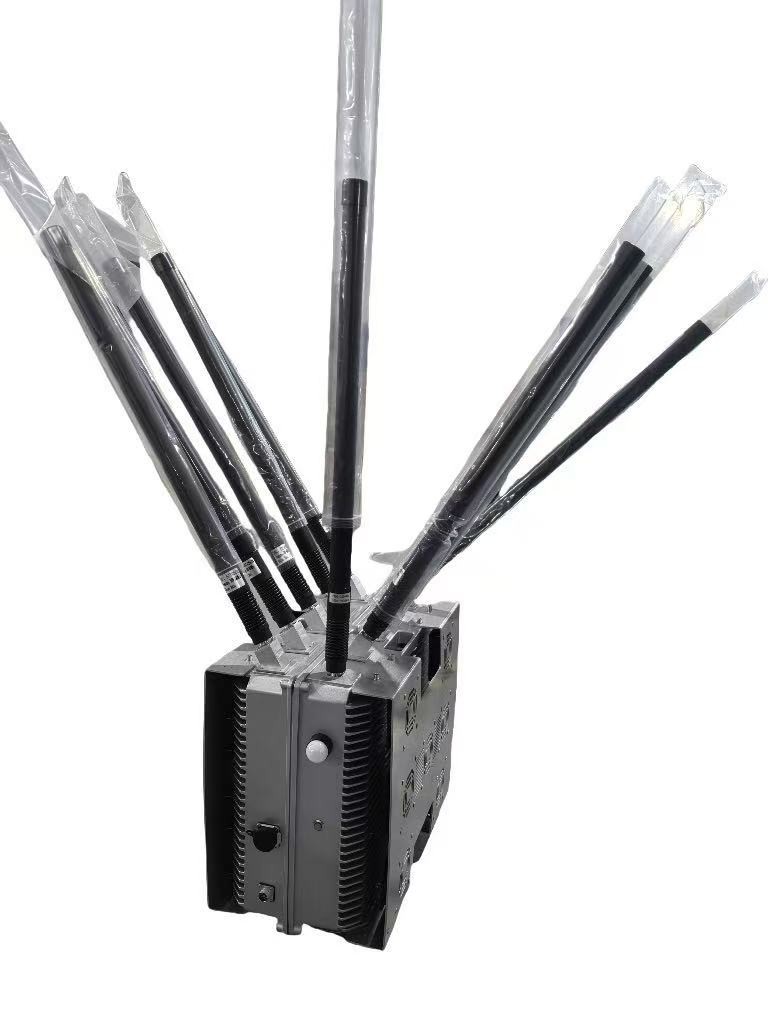

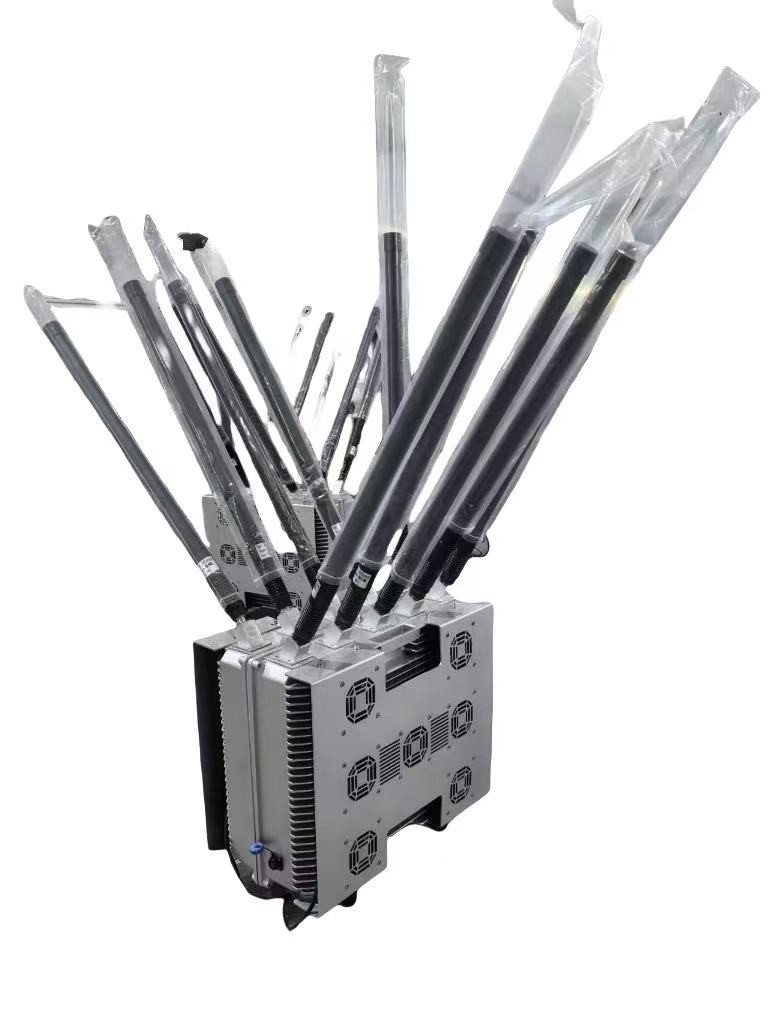

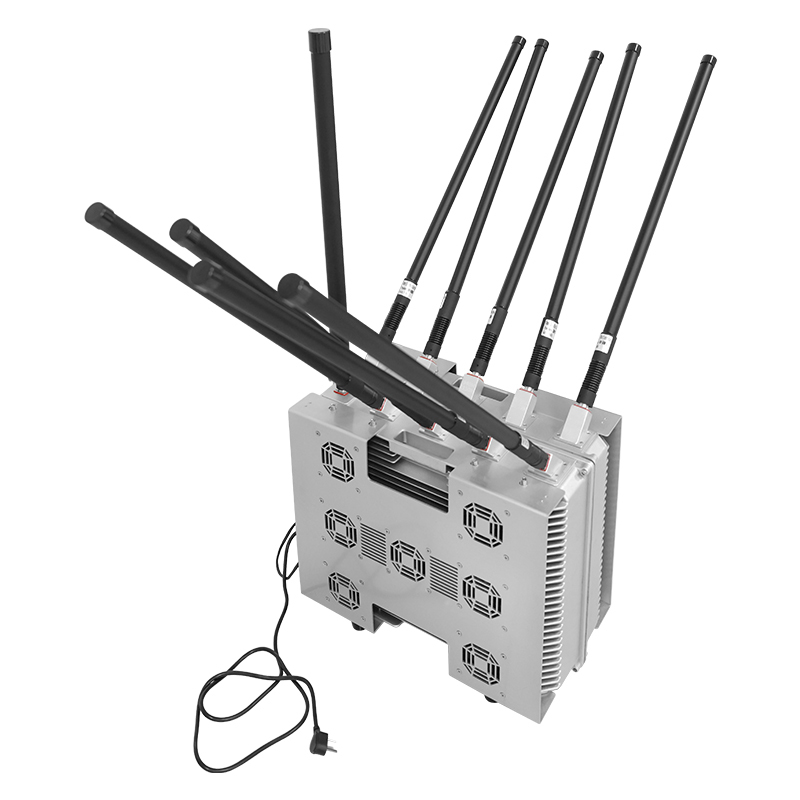

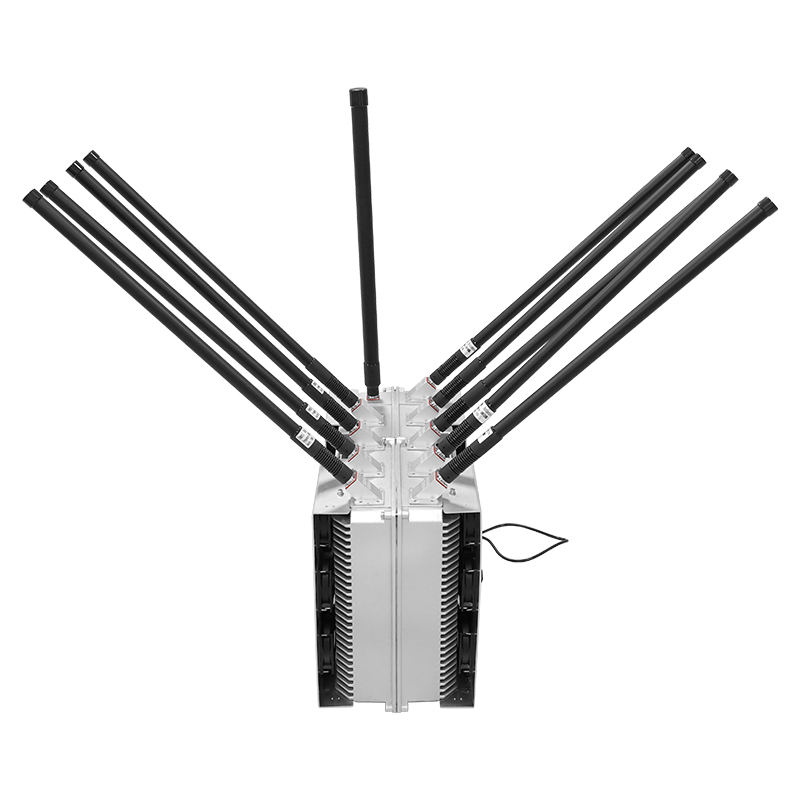

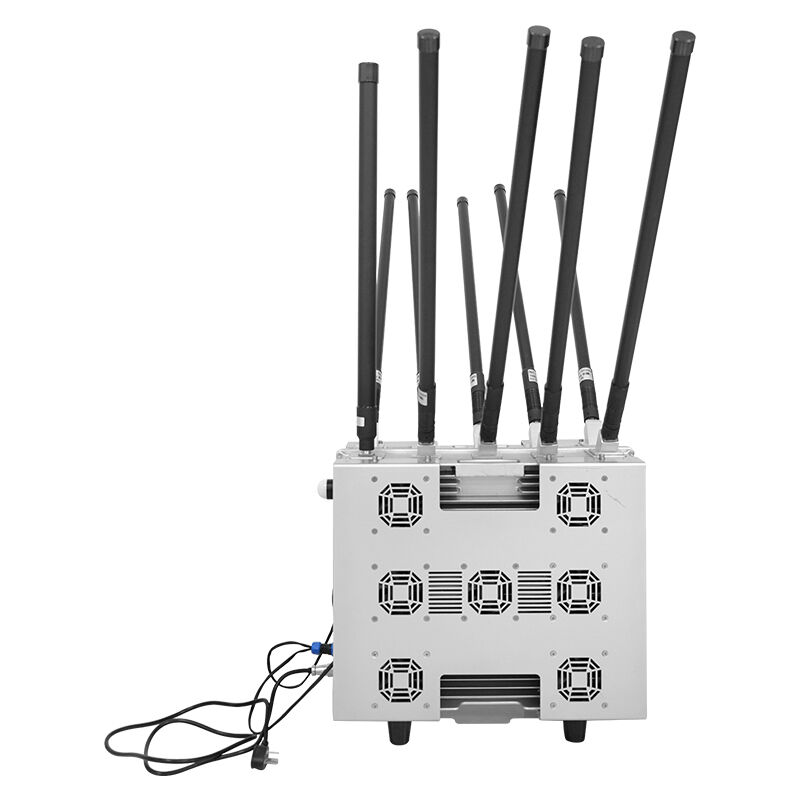

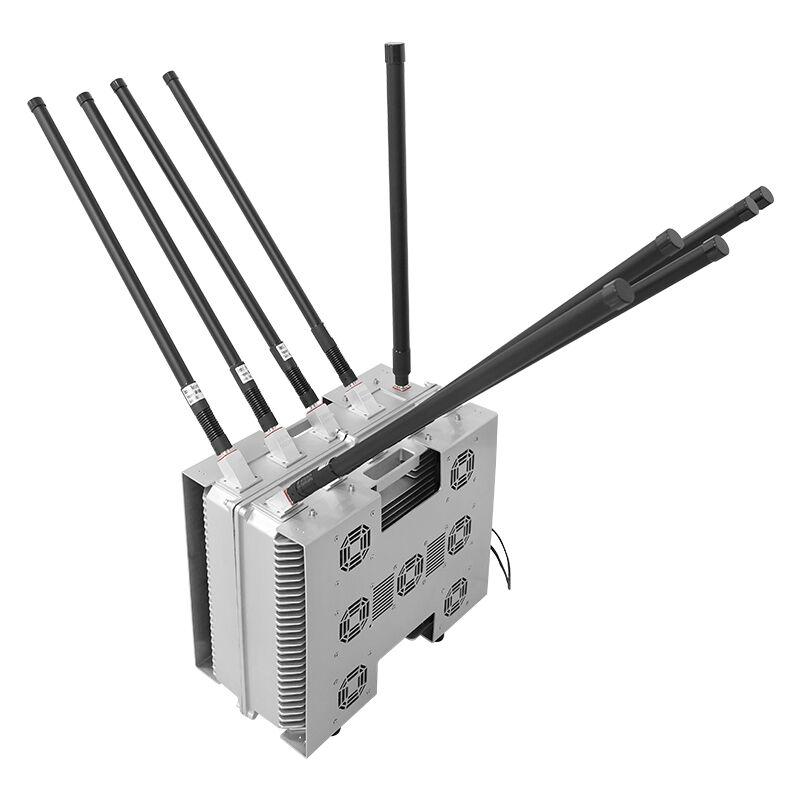

New Design 10 channel Full Band 360°Detection Jamming Equipment For FPV drone
New Design 10 Channel 360° Detection Jamming Equipment For FPV Drone is an advanced device designed for countering FPV. It uses 10-channel multi-band jamming technology, covers a wide frequency range of 400MHz-6GHz, and can accurately suppress the remote control, image transmission and navigation signals of FPV drones. It is suitable for security protection in military restricted areas, key facilities, large-scale events and other scenes.
The device has a built-in 360° omnidirectional detection system, combined with an intelligent spectrum analysis algorithm, which can scan and lock the target drone signal in real time, support multi-target simultaneous jamming, and ensure efficient countermeasures. Its modular design and portable structure facilitate rapid deployment and mobile use, making it an ideal choice in the field of drone defense.
Product specification
| Probe principle | Based on spectrum perception and artificial intelligence technology, the flight control link and map transmission link of UAV are identified and classified, which can detect the map transmission model and frequency of UAV |
| Detection model | DJI series uav, crossing aircraft and DIY map transmission uav can cover more than 97% of the models on the market |
| Multi-frequency detection | With conventional 1.2GHz, 2.4GHz-2.5GHz, 5.2GHz-5.9GHz, frequency band model map transmission detection, low false alarm rate. |
| Multi-frequency strike | Without any external unit, highly integrated integrated design, with the strike function of the conventional use of 2.4GHz, 5.8GHz and other remote control map transmission band UAV, and has the ability to interfere with GPS (can expand other frequency bands) |
| Strong interference | For the new UAV Mavic3 to achieve better interference effect, we have conducted a targeted design. By studying the technical specifications and working principle of Mavic3, we identify the interference strategies targeted |
|
Check play one unattended operation |
The equipment is a fixed scheme, can be mounted at high altitude,also can install vehicle for use.The jammer using the detection of automatic strike mode, 24 hours unmanned, the drone came to automatically open countermeasures. |
| How it works | Just click the switch, when the small indicator light is on, it means the device has been turned on and will automatically detect when a drone is detected, the large indicator light will light up, indicating that a drone has been detected around and the striking mode will be automatically turned on. |
| Detection frequency band |
1.2 GHz 2400-2485MHz 5725-5850MHz |
| Detection range | 1km (antenna gain 3 dbi, royal 3) |
| The detection of empty royal | 360° full air royal |
| Probe the number | 100 Endyceps sinensis |
| Detection refresh time | 3s |
| Continuous detection time | It lasts 24 hours a day |
| Interference frequency band | Fullrange (customized)300mhz,400mhz,600mhz,700mhz,800mhz...... |
| Interference mode | Drive away |
| Countermeasure distance | Greater than 1,000 m |
| operate time | It lasts 24 hours a day |
| Suitable installation height | Referring to the destination, 3m above the highest building |
| Counterpoint Angle | 360° full air royal |
| Charging method | 220V municipal electricity |
| control method | Automatic strike |
| Size | 60*55*27cm |
| Weight | 35kg |
1.10 frequency band channels can anti full-band drones
2.IP67 grade, rainproof and waterproof, suitable for all kinds of bad weather
3.Detection and strike integrated equipment, fully automatic and intelligent
4.100% original design, unique patent
5. It can be mounted on the wall or used in a car, and its usage is not restricted
6. Efficient heat dissipation, strong power carrying capacity
7. High-quality aluminum alloy die-casting, strong bearing capacity, corrosion resistance and wear resistance
Application case
Specially used for drone signal interference in open wild environments or large areas, such as confidential units, prisons, schools, troops, large factories and mines, etc.
