| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | TeXin |
| Certification: | CE ISO |
| Model Number: | TX-50W |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | durable case or box |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000/month |
| Frequency Range: | 1550-1620 MHz | Gain: | 8dBi |
|---|---|---|---|
| VSWR: | ≤2 | Polarization: | Vertical |
| Connector Type: | N-Female | Color: | White |
| Size: | 113*480mm | Weight: | 757g |
| Maximum Input Power: | 100W | ||
| Highlight: | Polarization Omnidirectional Antenna,Circular Omnidirectional Antenna,omnidirectional circularly polarized antenna |
||

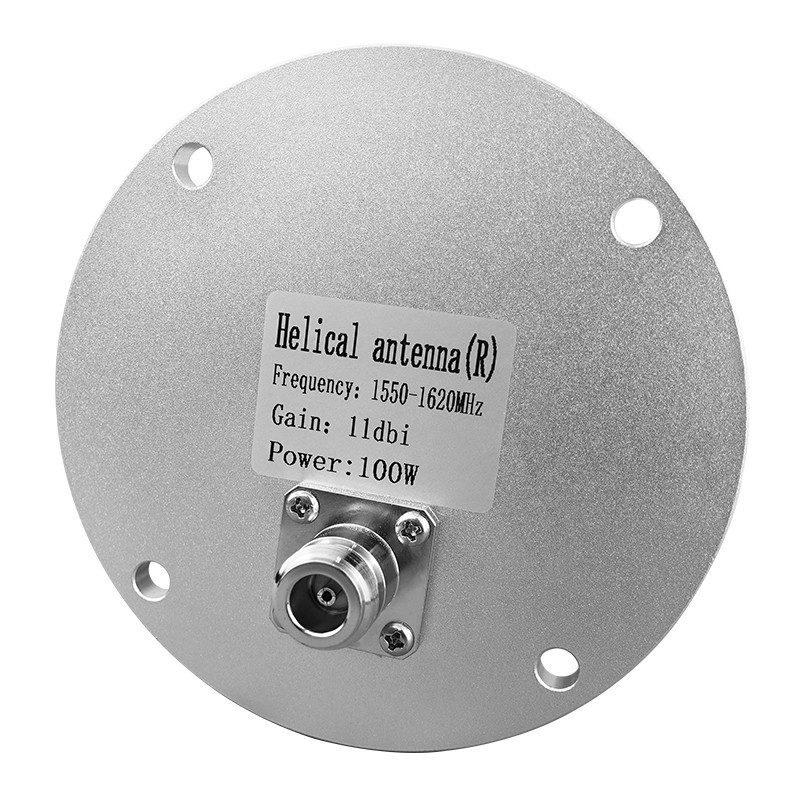

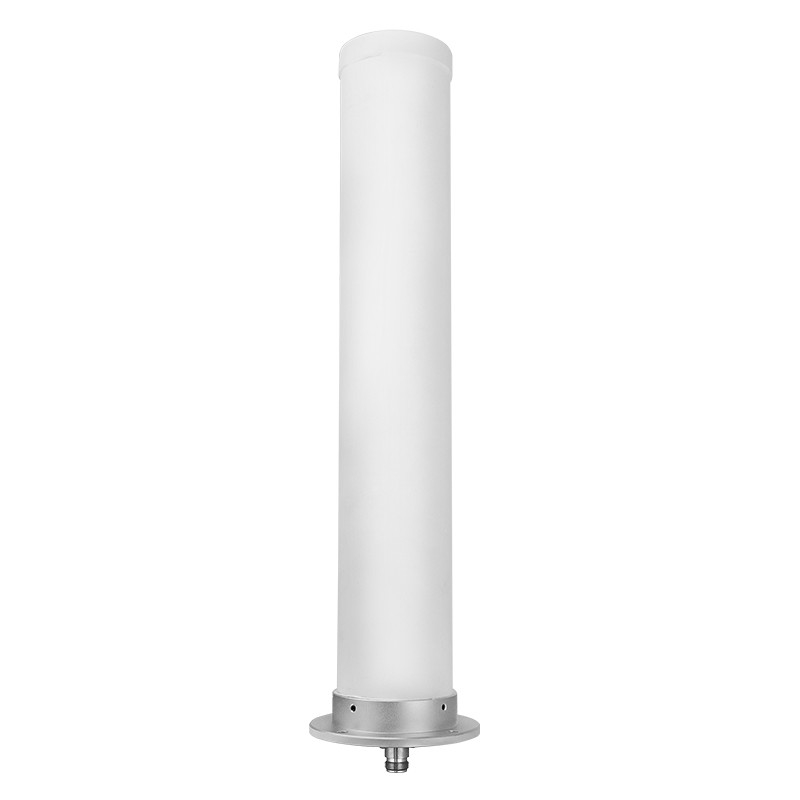

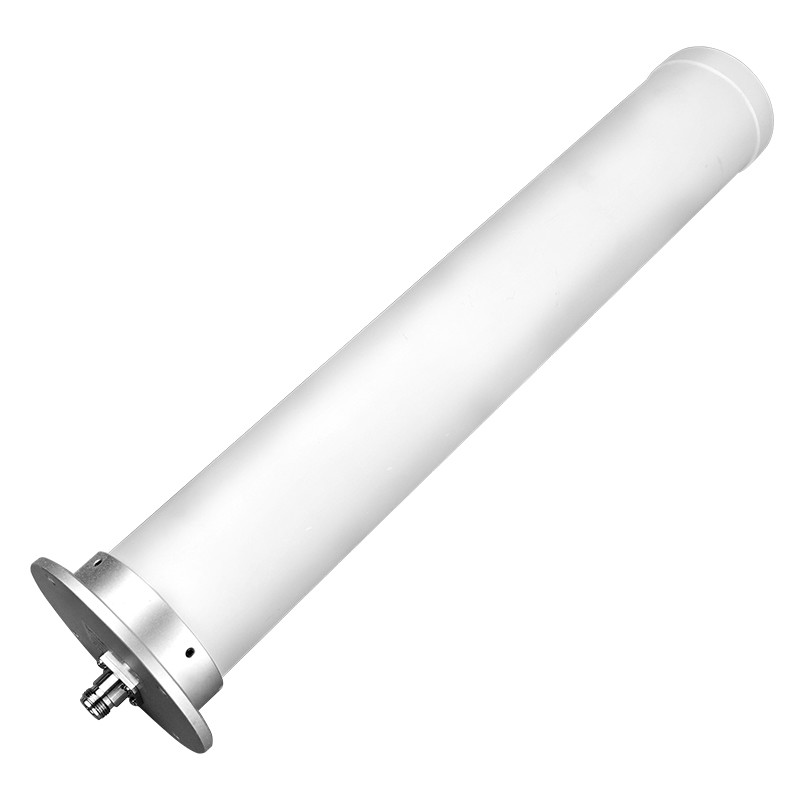

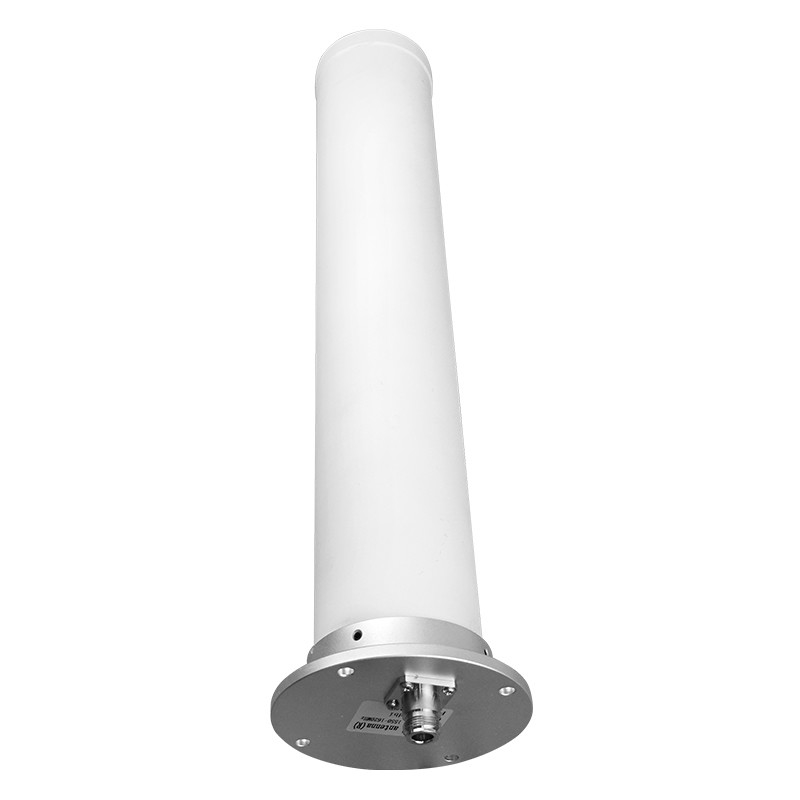

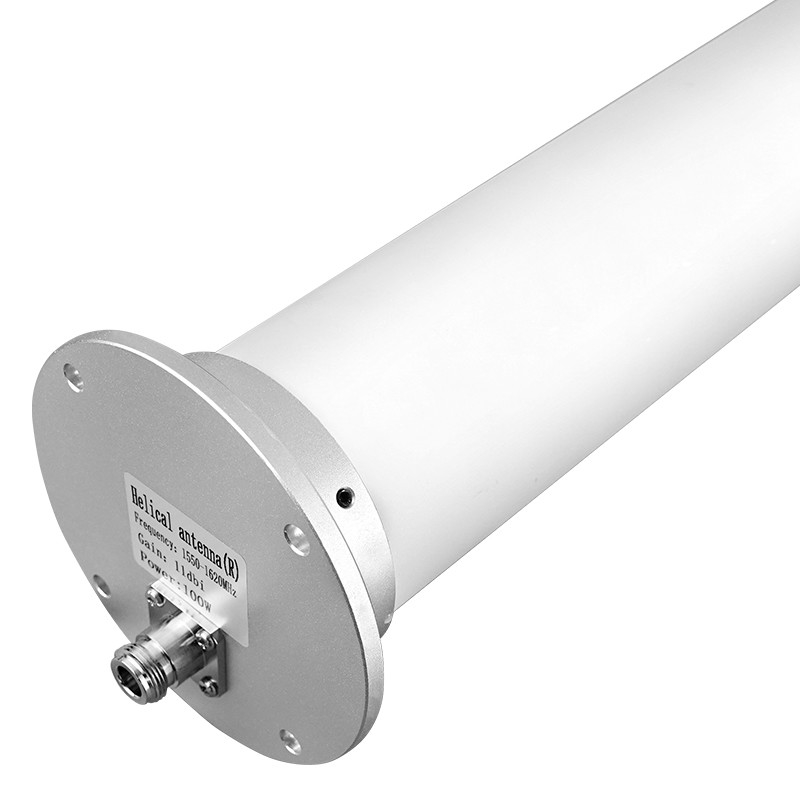

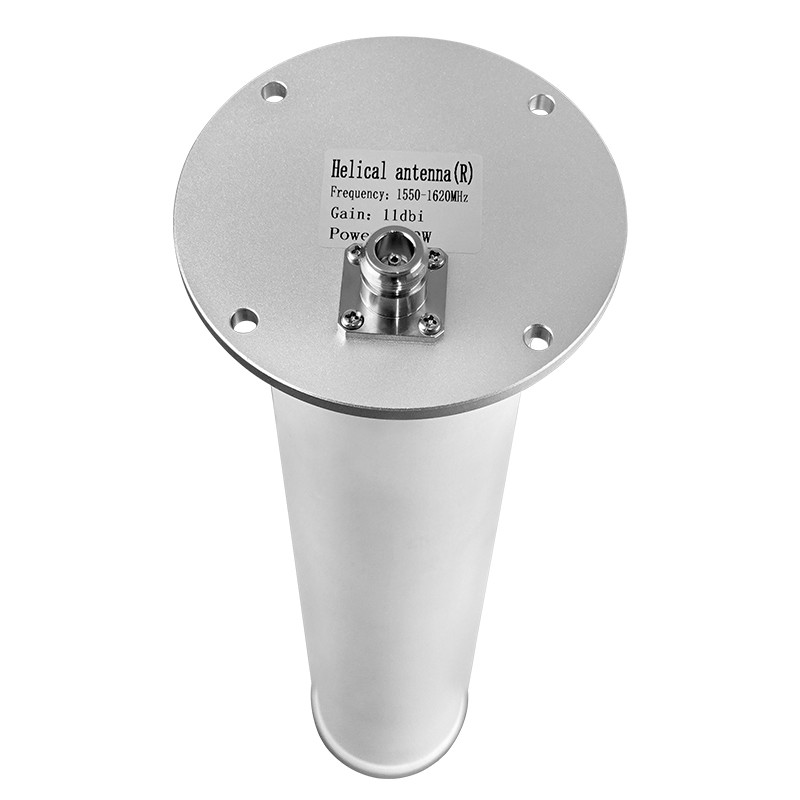

Newest Design 1550-1620 MHz 100W Circular Polarization Omnidirectional Antenna for Outdoor
This is an outdoor-specific antenna built with the latest design concepts. Its operating frequency band is 1550 - 1620 MHz. It has a power-carrying capacity of 100W, circular polarization, and omnidirectional radiation characteristics. It is designed to provide efficient, stable, and comprehensive signal coverage and transmission services for outdoor wireless communications, monitoring, and other application scenarios. With a power carrying capacity of up to 100W, it can meet the needs of high-power transmitting equipment. It can stably transmit strong signals over a large range to ensure long-distance communication coverage.
Product specification
| Electrical specifications | |
| Frequency range(MHz) | 1550-1620MHz(customized) |
| Gain (dBi) | 8dBi |
| Half-power beam width(º) | H:360 V:15 |
| Impedance (Ω) | 50 |
| VSWR | ≤2 |
| Polarization | Vertical |
| Maximum input power (W) | 100W |
| Lightning protection | DC Ground |
| Mechanical specifications | |
| Connector | N female |
| Dimension (mm) | Ф113*480mm |
| Antenna weight | 757g |
| Material | PVC |
| Rated wind velocity (km/h) | 60 |
| Mounting way | Pole-holding |
| Ambient temperature (℃) | -40℃~+60 |
| Radome material | ABS |
| Radome Color | White |
Product feature
1. Excellent anti-jamming capability
2. Flexible signal reception
3. 100W power capacity
4. Optimized signal transmission efficiency
5. Solid structure
