| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | TeXin |
| Certification: | CE ISO |
| Model Number: | TEXIN-50W |
| Document: | Anti Drone product-TeXin.pptx |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | durable case or box |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000/month |
| Frequency Range: | 5.2GHz 5.8GHz | Test Voltage: | 28V |
|---|---|---|---|
| Current: | 4.2A | Output: | 50W |
| Gain: | 47dB | Connector: | N / Male |
| Installation Method: | Aluminum | Operating Temperature(ºC): | -40~+65 |
| Highlight: | 50W RF signal jammer module,5.8G RF signal jammer module,N-Connector RF signal jammer module |
||

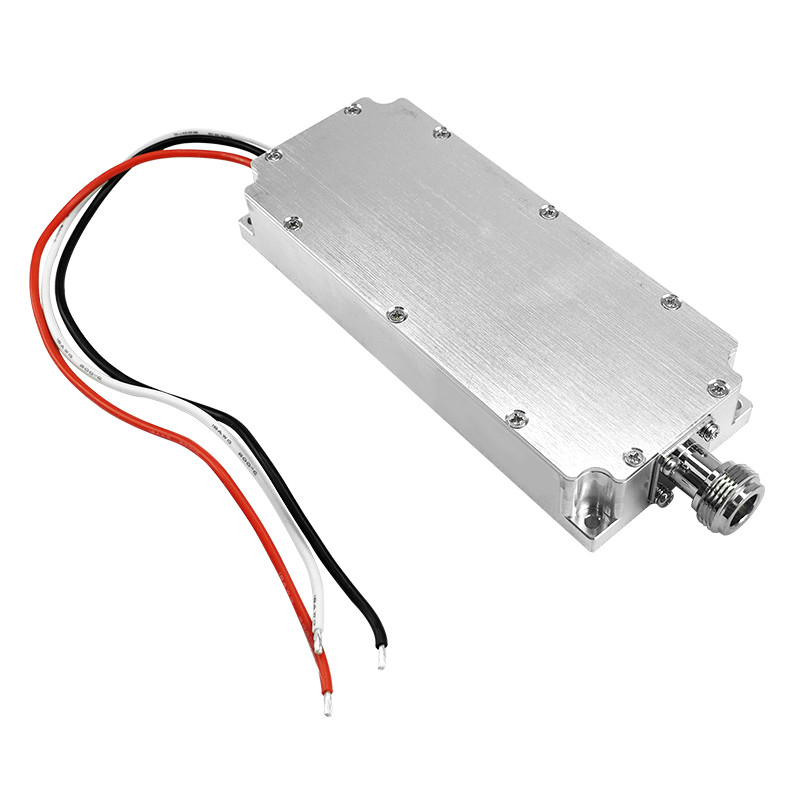

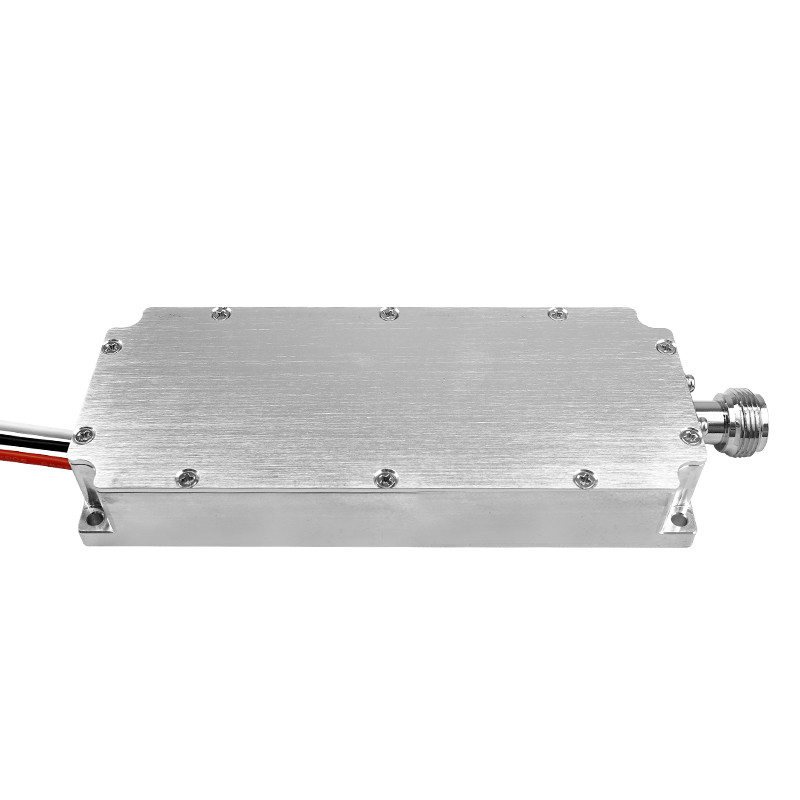

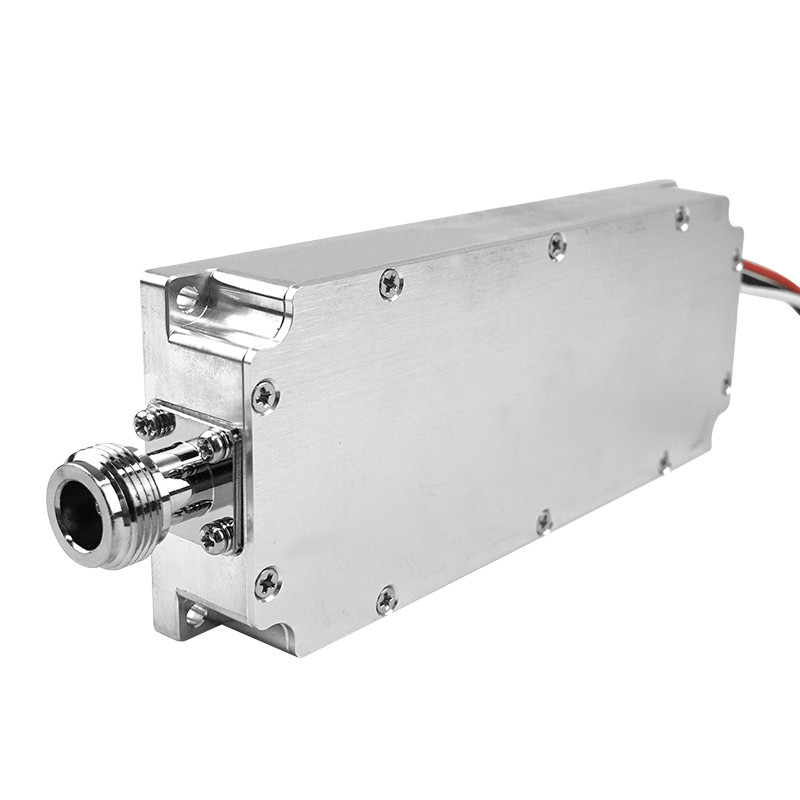

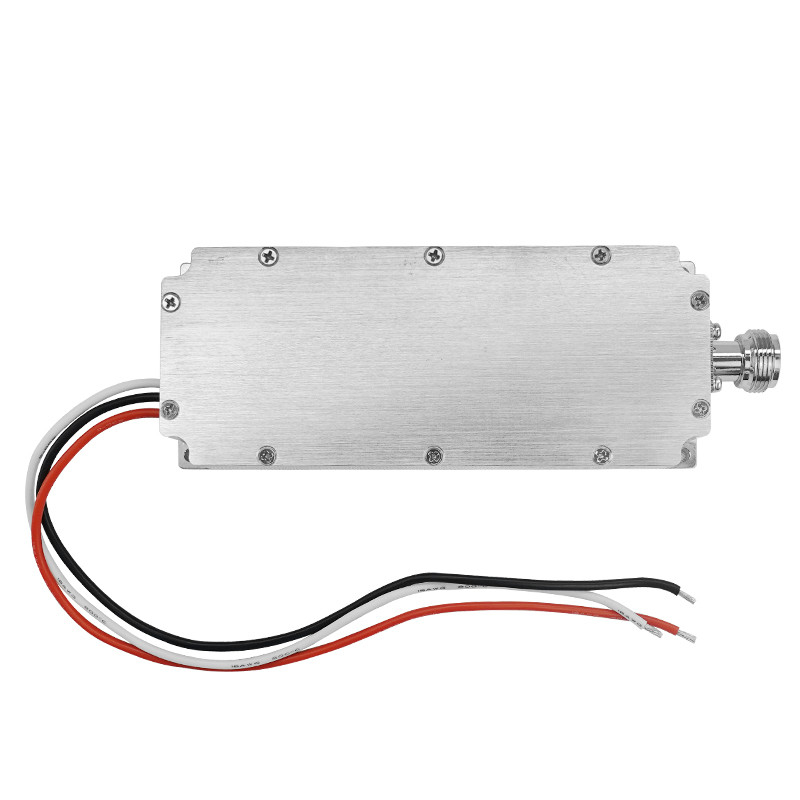

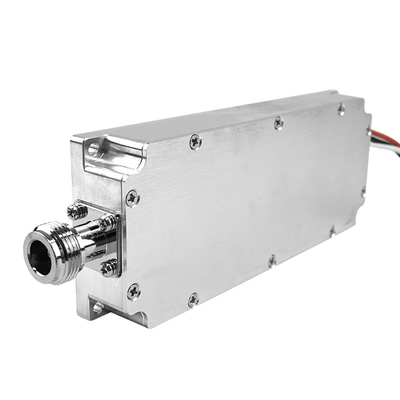

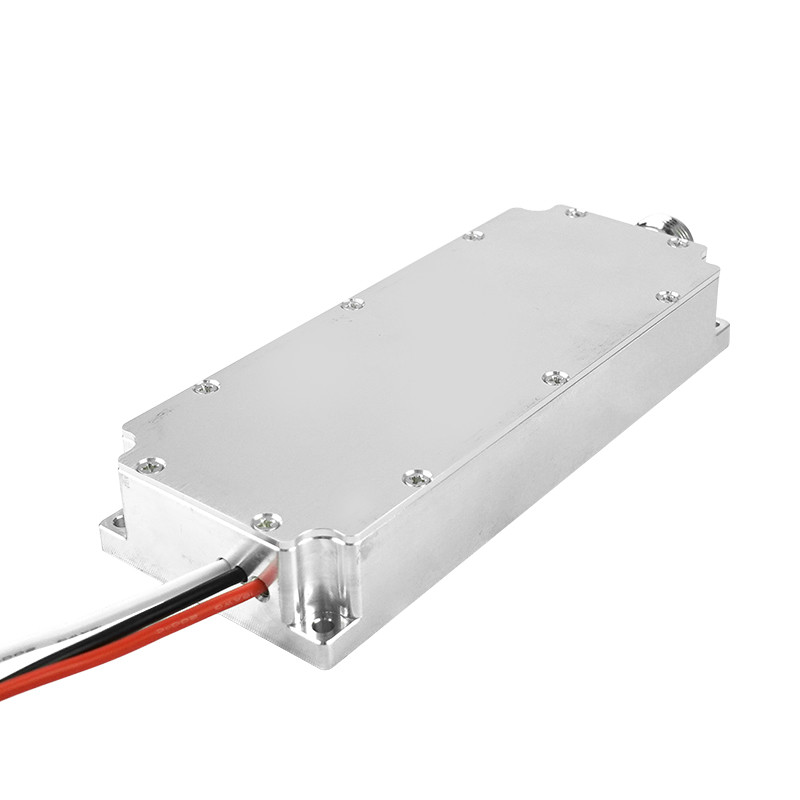

Factory supply 5.8G50W N-Connector RF signal jammer module for drone
The 5.8GHz 50W original was produced by Shenzhen Texin of China and the biggest different from other supplies is that the 50W drone jammer module takes N-male.T he N-male connector supports high power connection when in a high-power device it will not be damaged by high temp.
The 5.8G 50W signal jammer module has ca circular designed, which is protection for the module. Taking an extra thick aluminum nutshell makes the jammer module good heat dissipation effect.
The 5.8G 50W Circulator anti-drone jammer module brings convenience to our daillivesfe, It can be used in schools, government, city centers airports, and entertainment Venues. It is highly efficient to protect our safety.
| No. | Item | Data | Unit |
| 1 | Frequency | 5800 | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 4.2 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | N / male | |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Power supply wire | Red+Black+Enable wire | |
| 10 | Enable Control | High ON Low Off | |
| 11 | Out shell Size | 150*53*20mm | mm |
| 12 | Mount hole | 48*126 | mm |
| 13 | Weight | 316 | g |
| 14 | Work Temperature | -40~+65 | ℃ |
| 15 | Out shell material | Aluminum | |
| 16 | Vibration needCarload | d OK | |
Product features:
*Support customized frequency 400-6000MHz
* Using good quality chips and VCO
*Fix hole designed anti-shockedananti-fall
*Circulator build-in from protection to jammer module
*Lightweight and small size easy to carry
*The module support 24V-28V operate voltage
