| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | TeXin OEM |
| Certification: | CE ISO |
| Model Number: | TX007-4359-6-17D65VBZ |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Durable case or box |
| Delivery Time: | Within 3 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, |
| Supply Ability: | 100000/month |
| Brand: | TEXIN | Application: | Signal Jammer Field |
|---|---|---|---|
| Power: | 50W | Frequency: | 100-1000MHz 4000-5000MHz(Customized) |
| Size: | 390*390*50mm | Weight: | 3.4 Kg |
| Material: | ABS Shell | Rated Wind Velocity: | 60m/s |
| Current: | 29A | Installution Method: | Handle |
| Mechanical Tilt(º): | 0-10º | Color: | BLACK |
| Highlight: | 60m/s Rated Wind Velocity Antenna,UAV Jammer Long Range Antenna,Handle Panel Long Range Antenna |
||

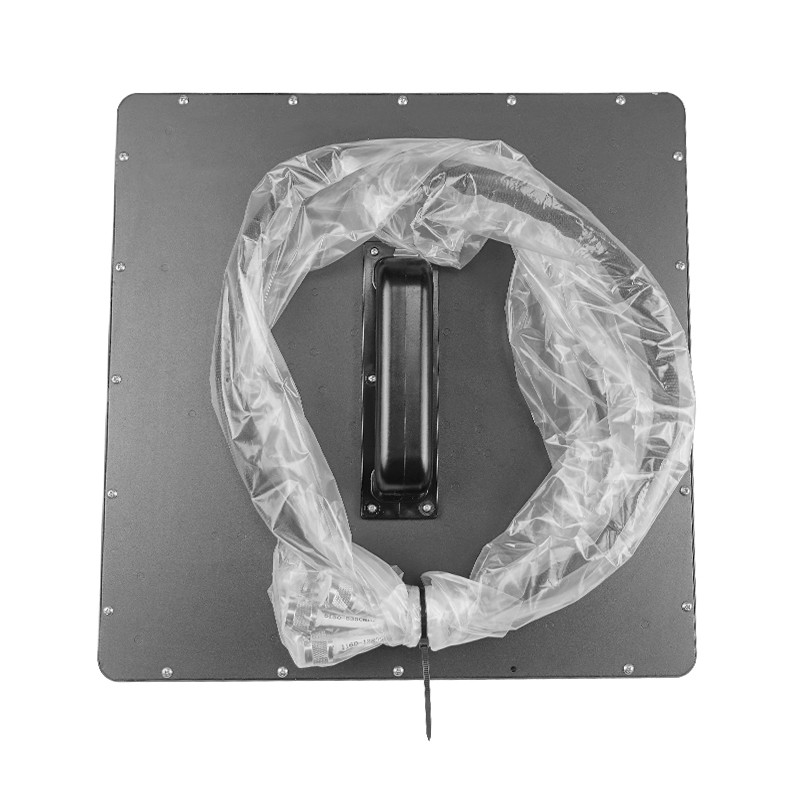

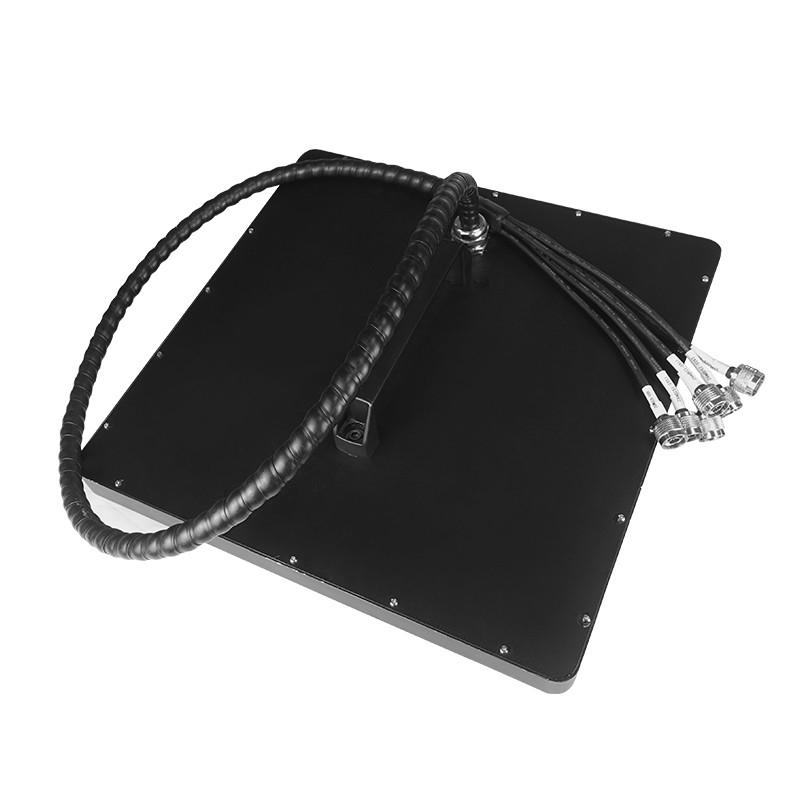

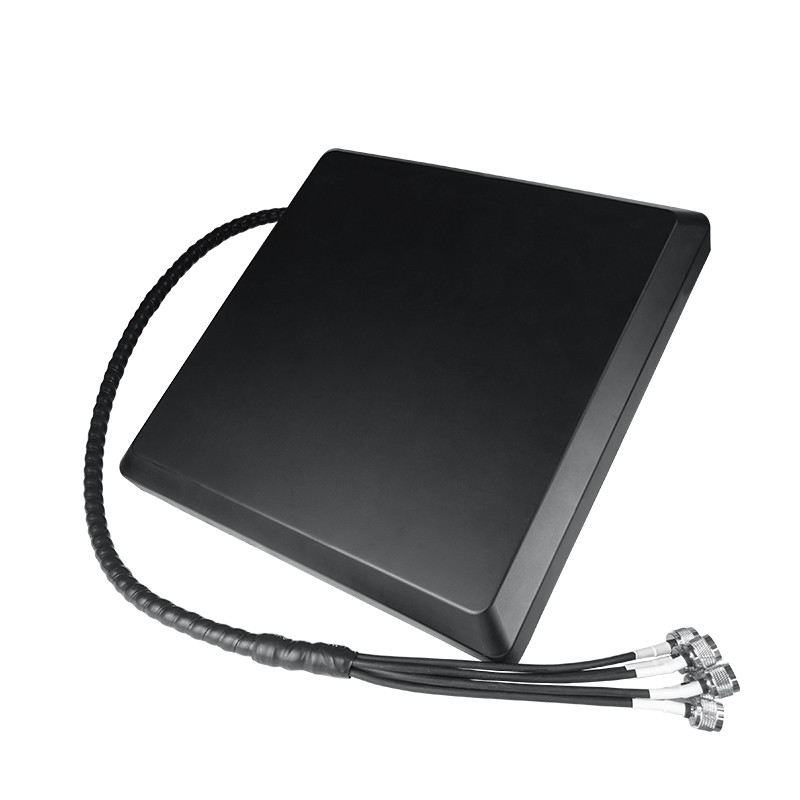

7 band ABS material handle panel long range antenna for manpack anti drone Uav jammer
This is a ABS out shell material antenna ,the antenna is apecial designed for anti drone manpack jammer ,it is a directional antenna which intergrated 7frequency band total .The frequency band can be customized such as 428-438MHz,860-930MHz......
And the 7 band ABS material handle panel has long frequncy jamming about 1km when it connect anti drone manpack ,the users can portable move and easy to carry.
parameter:
| █Electrical Specifications | ||
| FrequencyRange | 428-438/860-930/1160-1280/1560-1620/2400-2500/5150-5350/5700-5900MHz | |
| Gain(dBi) |
428-438MHz 7dbi 860-930MHz 8dbi 1160-1280MHz 12dbi 1560-1620MHz 12dbi 2400-2500MHz 14.5dbi 5150-5350MHz 17dbi 5700-5900MHz 17.5dbi |
|
| VSWR | ≤2 | |
| Polarization |
428-438MHz V 860-930MHz V 1160-1280MHz V 1560-1620MHz V 2400-2500MHz V 5150-5350MHz V 5700-5900MHz H |
|
| Horizontal Beamwidth(0º) |
428-438MHz 65±10º 860-930MHz 65±10º 1160-1280MHz 65±10º 1560-1620MHz 65±10º 2400-2500MHz 35±5º 5150-5350MHz 22±3º 5700-5900MHz 22±3º |
|
| Vertical Beamwidth(0º) |
428-438MHz 65±10º 860-930MHz 65±10º 1160-1280MHz 35±10º 1560-1620MHz 35±10º 2400-2500MHz 35±5º 5150-5350MHz 32±3º 5700-5900MHz 32±3º |
|
| Front-to-back ratio(dB) | ≥20 | |
| Electrical lower inclination(0º) | 0º | |
| Input Impedance(Ω) | 50Ω | |
| Maximum input power(W) | 50W | |

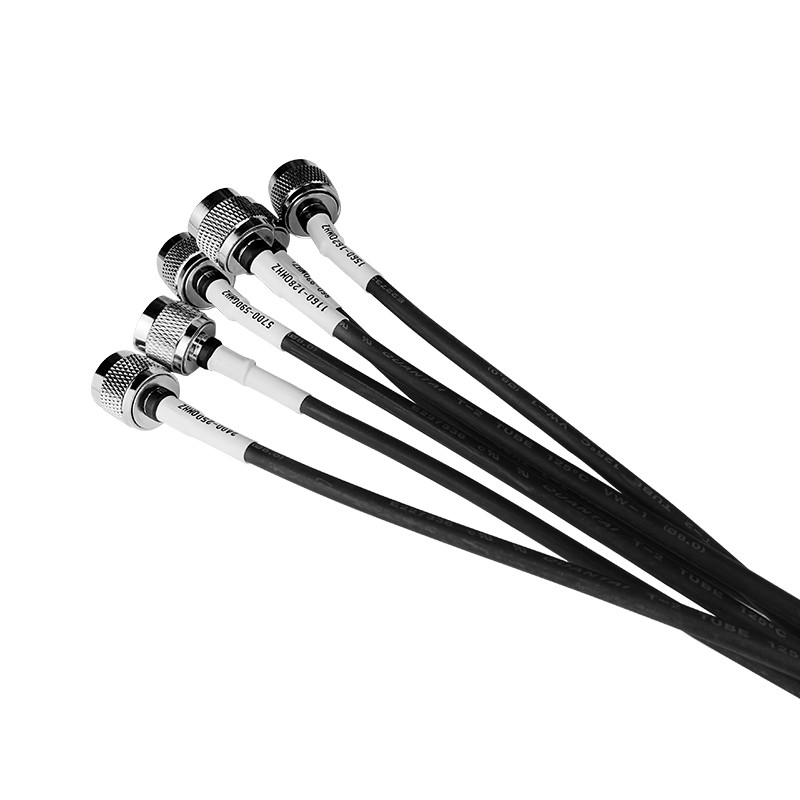

| Inpur connector type | 1500mm7*N-J | |
| Lightning Protection | DC Ground | |
| █Mechanical Specifications | ||
| Dimensionsmm(Height/Width/Depth) | 390*390*50mm | |
| Packing size(mm) | 430*430*150mm | |
| Antenna weight(kg) | 3.4kg | |
| Rated Wind Velocity(m/s) | 60m/s | |
| Operational Humidity(％) | 10- 95 | |
| Radome Color | black | |
| Radome material | ABS | |
| Operating temperature(ºC) | -30～70 º | |
| Installution Method | handle | |
| Mounting hardware(mm) | ￠30～￠75 | |
| Mechanical tilt(º) | 0-10º | |
Features :
1.7 band frequency intergrated
2.Long range jamming around 1 km

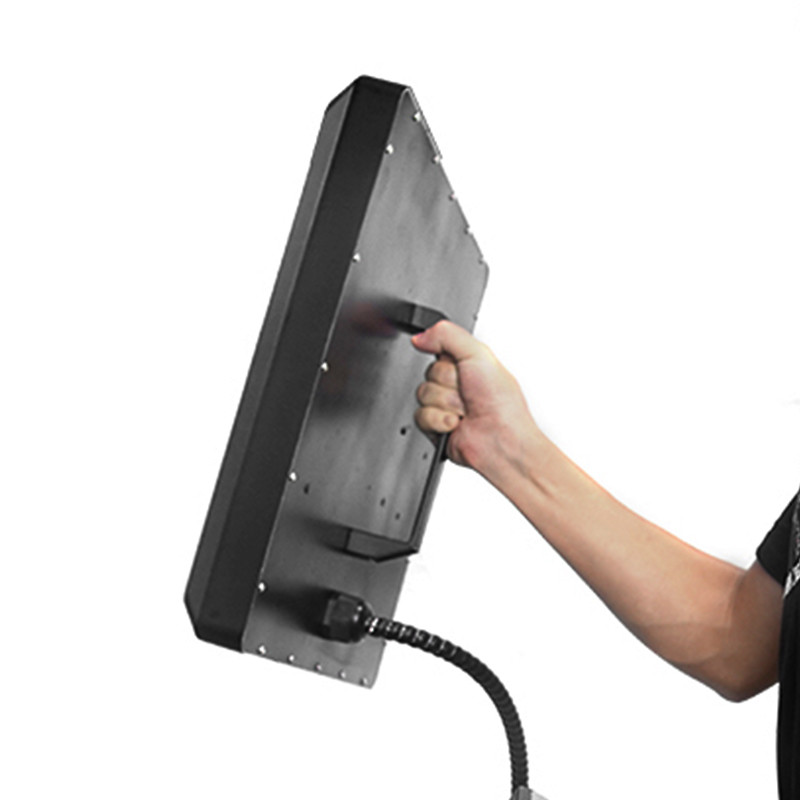

3. It is handle portable antenna
4.Set smart handle to carry
Application
Military and Defense: Essential for military units tasked with securing airspace from unauthorized UAV activities.
Security Operations: Suitable for use in high-security areas, events, and critical infrastructure protection against potential drone threats.
Civilians and Law Enforcement: Assists in mitigating risks posed by rogue drones in populated areas or sensitive locations.
Factory real display
