| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | TeXin |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | durable case or box |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000/month |
| Type: | Omni Antenna | Frequency Range: | 2400-2500MHz |
|---|---|---|---|
| VSWR: | ≤1.5 | Maximum Input Power: | 50W |
| Material: | Fiberglass | Brand: | TeXin |
| Application: | FPV Antenna | Gain: | 3dBi(customized) |
| Input Impedance: | 50Ω | Color: | Black |
| Weight: | 136g | Working Range: | 360° |
| Highlight: | 3dbi Gain Fiberglass Omni Antenna,2400-2500MHz Fiberglass Omni Antenna,Customized omni fiberglass antenna |
||
A 2400-2500MHz 3dBi omni-directional antenna is commonly used for wireless communication in the 2.4GHz band, often utilized in Wi-Fi, Bluetooth, and ISM (Industrial, Scientific, and Medical) band applications. It can achieve all-round signal coverage and ensure stable wireless communication connections.

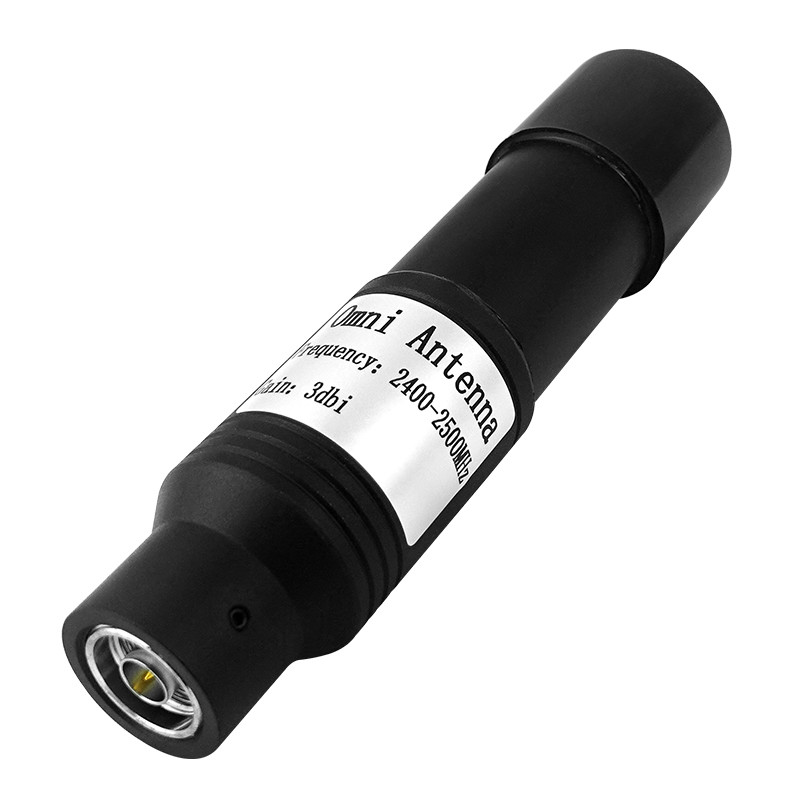

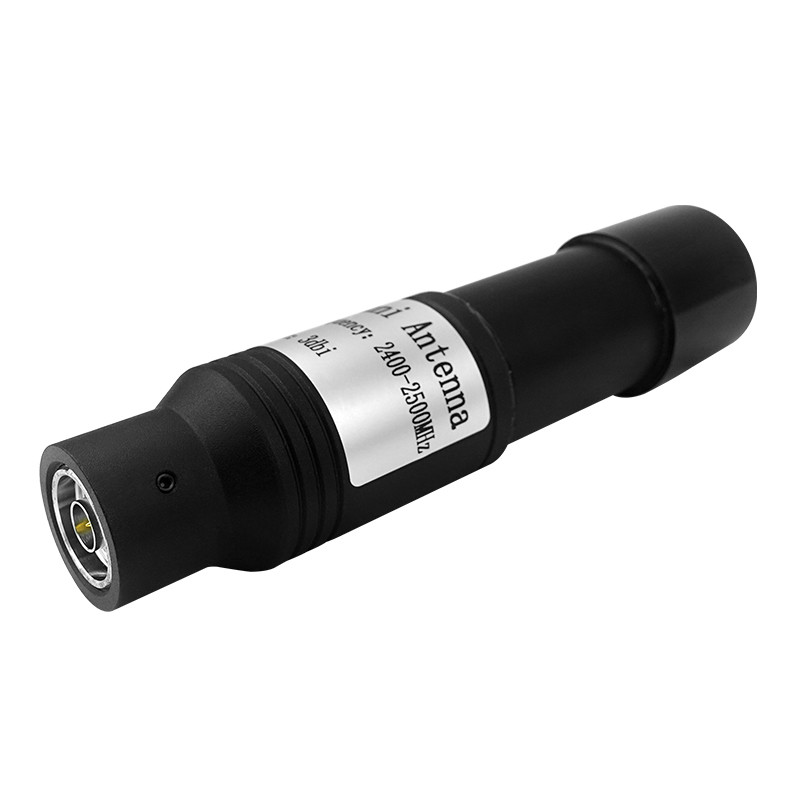

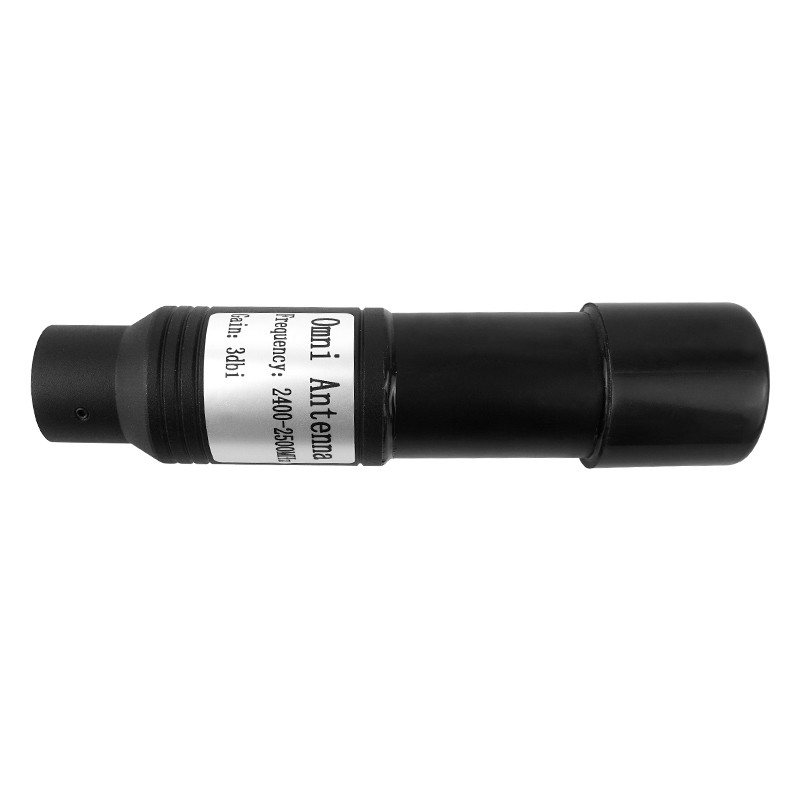

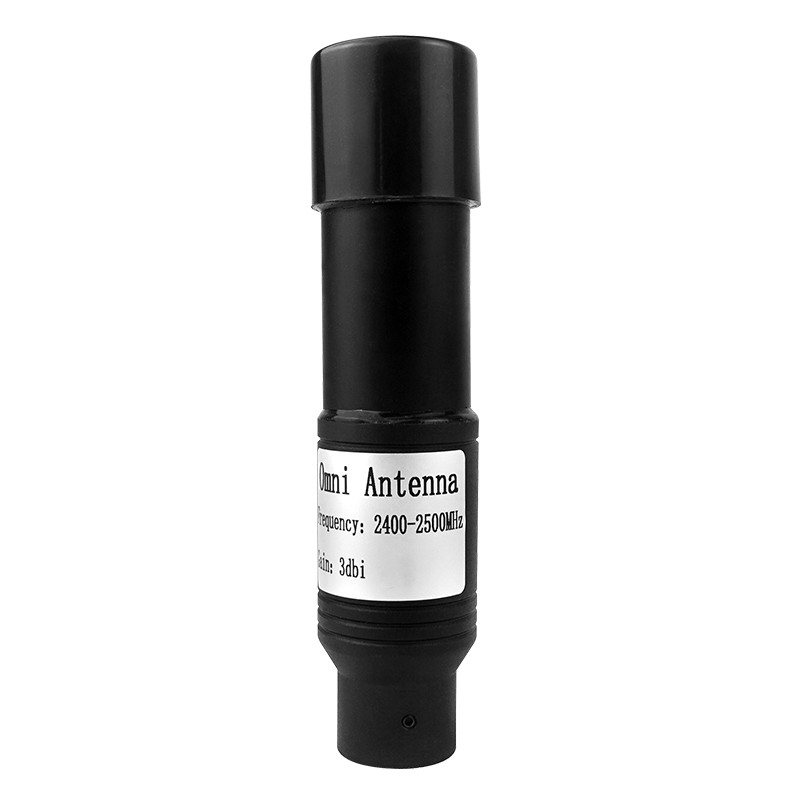

Customized 2400-2500MHz 3dbi Gain Fiberglass Omni Antenna for Anti-FPV Drone
A 2400-2500MHz 3dBi omni-directional antenna is manufactured with high-quality materials for durability and anti-interference capabilities. The antenna has a gain of 3 dBi, which means it increases the signal strength in its radiation pattern by 3 dBi compared to an isotropic radiator (a theoretical antenna that radiates equally in all directions). It widely used in wireless routers, access points, and Wi-Fi extenders to provide extended coverage in homes, offices, and public areas.
Product specification
| Electrical Specifications | ||
| Frequency Range | 2400-2500 MHz | |
| Gain(dBi) | 3±0.5dBi | |
| VSWR | ≤1.5 | |
| Polarization | vertical | |
|
Horizontal Beamwidth(0º) Vertical Beamwidth(0º) |
360º 55±5º |
|
| ovality(dB) | ≤±2dB | |
| Input Impedance(Ω) | 50Ω | |
| Maximum input power(W) | 50W | |

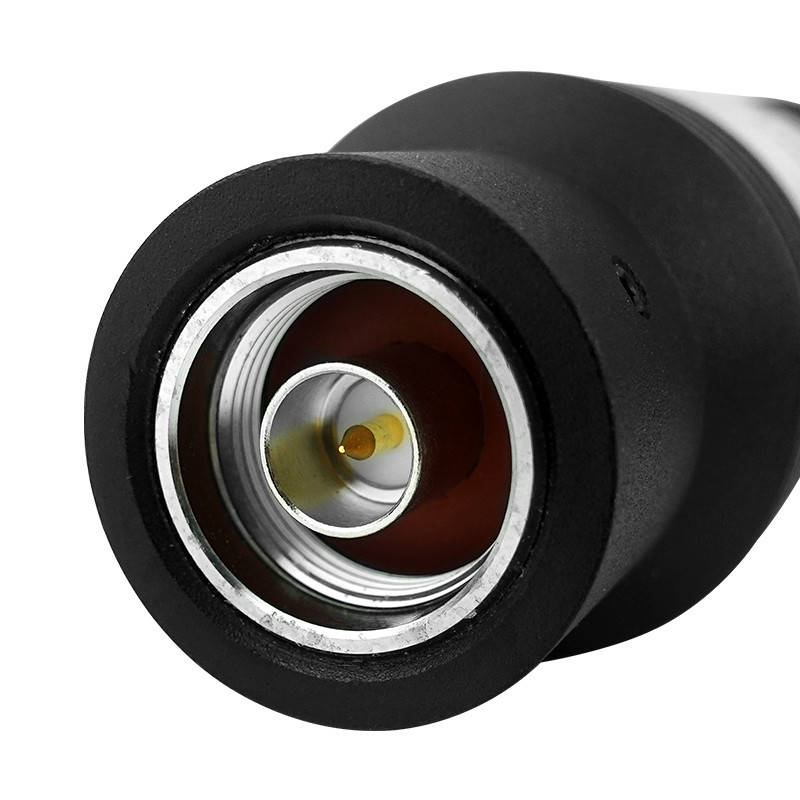

| Input connector type | N-K | |
| Lightning Protection | DC Ground | |
| Mechanical Specifications | ||
| Dimensionsmm(Height/Width/Depth) | ɸ32*149mm | |
| Antenna weight(kg) | 0.136KG | |
| Rated Wind Velocity(m/s) | 60m/s | |
| Operational Humidity(％) | 10- 95 | |
| Radome Color | black | |
| Radome material | glass fiber reinforced plastics | |
| Operating temperature(ºC) | -40～55 º | |
| Installation Method | Machine installation | |
FAQ
Who we are?
Shen zhen Texin electronics co.,Ltd is a electronic communication type company which developed 2014,it has over 10 years in this field ,we sales WIFI signal reapeter and anti drone jammer ,most products can be customized .
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side
