| Place of Origin: | Guang Dong china |
|---|---|
| Brand Name: | Texin |
| Model Number: | LyAF-7010-3.5Q55VQX2 |
| Minimum Order Quantity: | 1 |
| Price: | negotiate |
| Packaging Details: | 30*40*30cm |
| Delivery Time: | 5-8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000per month |
| Type: | Directional Antenna | Application: | FPV Antenna |
|---|---|---|---|
| Frequency Range: | (customized) | Gain: | 3dBi(customized) |
| VSWR: | ≤2 | Input Impedance: | 50Ω |
| Maximum Input Power: | 50W | Color: | Black (customized) |
| Material: | Fiberglass | Weight: | 14g |
| Brand: | TEXIN | Working Range: | 360° |
| Highlight: | 5.8G FPV Antenna,3dBI FPV Antenna,Fiberglass Material FPV Antenna |
||

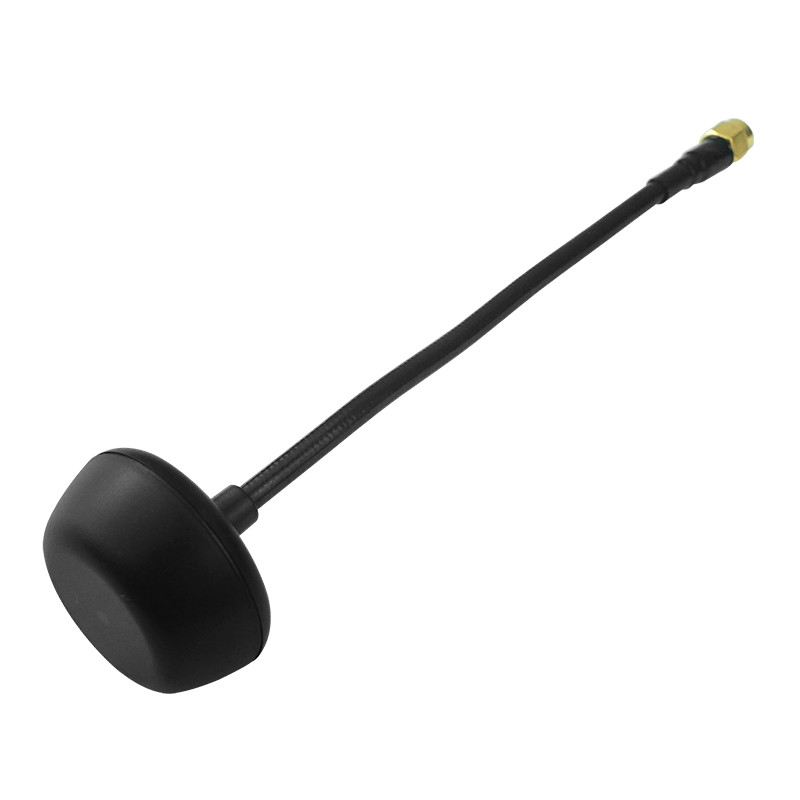

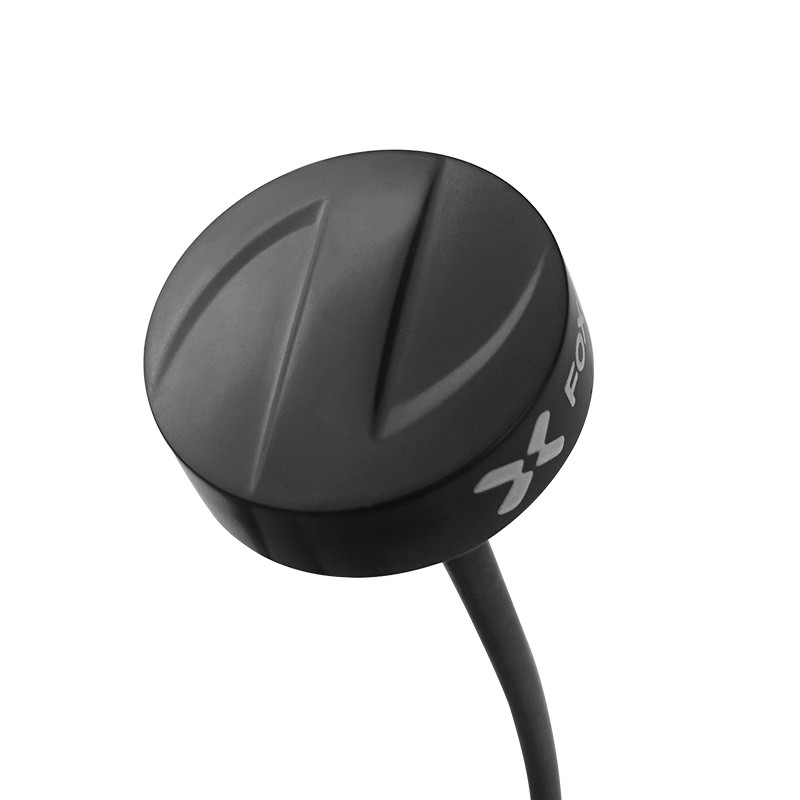

FPV Mushroom head shape 5.8G 3dBI omni FPV antenna for FPV Components
product introduction
FPV Mushroom head shape 5.8G 3dBI omni FPV antenna for FPV Components using ABS material and takes sma connector .it is super light only 14g and the connector can customized .The antenna transmit efficiency and Good heat resistance.
product sepcification
| Electrical Specifications | |
| FrequencyRange |
5.8G(customized) |
| Gain(dBi) |
3dBi |
| VSWR | ≤2 |
| Polarization | virtical |
|
Horizontal Beamwidth(0º) Vertical Beamwidth(0º) |
55±10º 30±10º |
|
ovality(dB) |
≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | SMA |
| Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) |
140*16*32mm |
| Packing size(mm) | 145*21*35mm |
| Antenna weight(kg) | 14g |
| Rated Wind Velocity(m/s) |
31m/s |
| Operational Humidity(％) |
10- 95 |
| Radome Color | black |
| Radome material | ABS |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Machine mounting |
Product advantages
FAQ
Who we are?
Shen zhen Texin electronics co.,Ltd is a electronic communication type company which developed 2014,it has over 10 years in this field ,we sales WIFI signal reapeter and anti drone jammer ,most products can be customized .
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
