| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | TX |
| Certification: | ISO9001,SGS,CE |
| Model Number: | TX-100W |
| Document: | Module -TeXin.pdf |
| Minimum Order Quantity: | 1 |
| Price: | $140-160 |
| Packaging Details: | Durable case or box |
| Delivery Time: | 1-3 days |
| Payment Terms: | L/C, D/A, D/P, T/T, |
| Supply Ability: | 10000pcs per month |
| Product Name: | GaN 400-700MHz 100W Jammer Module | Type: | GaN |
|---|---|---|---|
| Frequency: | 400-700mhz | Size: | 130*55*24mm |
| Weight: | 310g | Application: | Privacy Protection, Prisons, Schools |
| Color: | Silver | Warranty: | 1 Year |
| Voltage: | 24-28V | Current: | 6A |
| Connector: | N-end | VCO: | Radio Frequency Vibration |
| Highlight: | 2 Channel GPS Signal Jammer,Aluminum Alloy GPS Signal Jammer,Omnidirectional Antenna gps signal blocker |
||

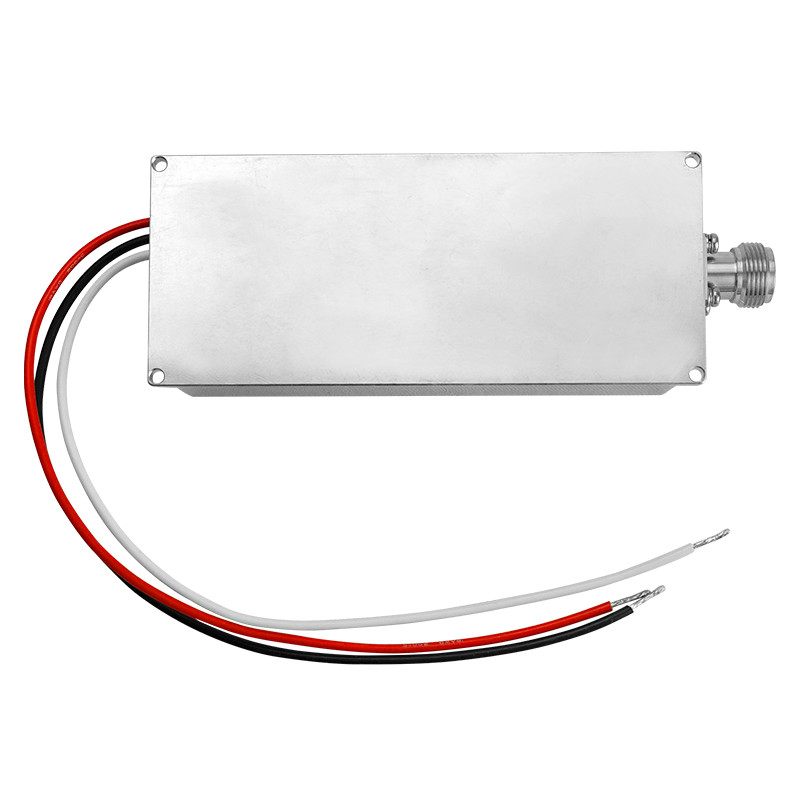

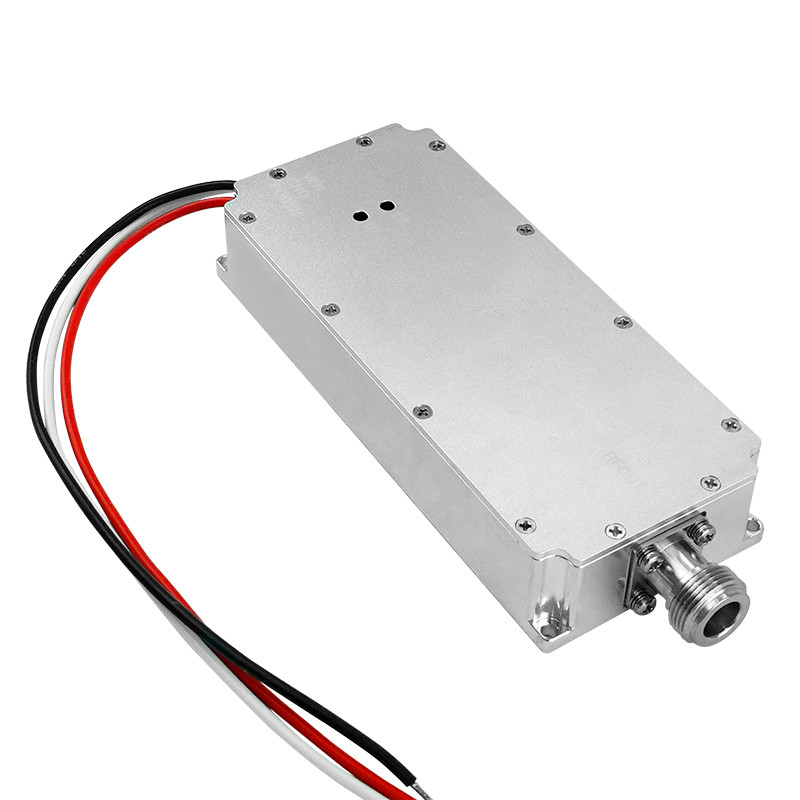

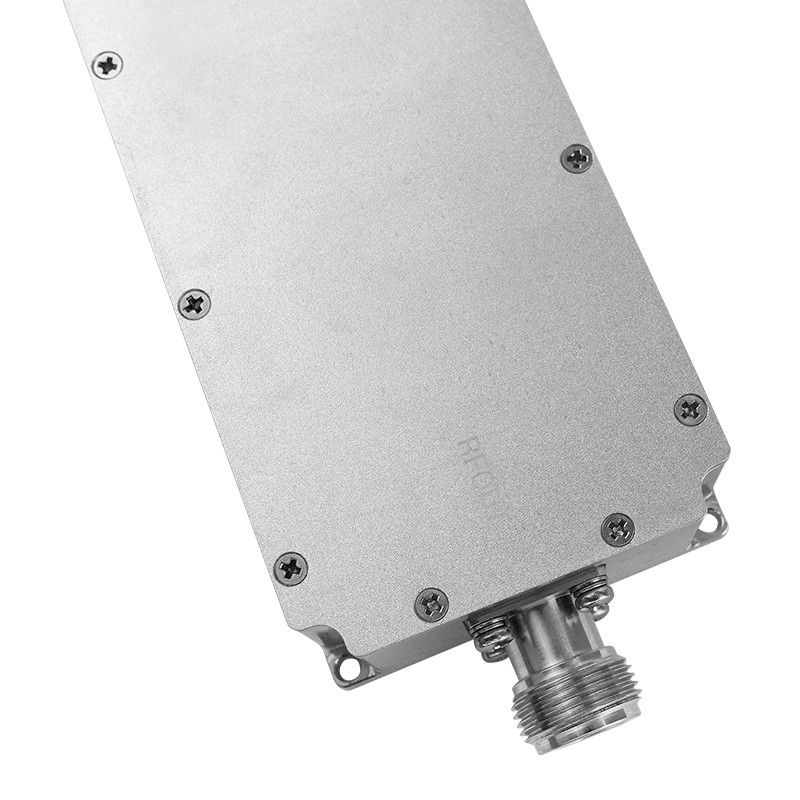

High power 100W 50dbm N type wide band GaN 400-700mhz anti drone rf jammer module
Product Introduction
100W 50dbm 400-700mhz N type wide band jammer module has play important role of anti drone jammer system ,the module takes radio technology that can emit jamming signal around 1-3km despends on real environment .
The anti drone jammer module can cover 300MHz bandwidth in one module such as 433mhz 500mhz 600mhz .And It is suitable for interfering with most small drones on the market and can effectively cut off the image transmission channel to achieve the purpose of protecting privacy and security.
Specification
|
400-700MHz 100W RF Power Amplifier Specification |
||||
|
No. |
Item |
Data |
Unit |
Notes |
|
1 |
Frequency |
400-700 |
MHZ |
|
|
2 |
Work Temperature |
-20~+70 |
℃ |
|
|
3 |
Max Output Power |
100 |
W |
|
|
4 |
Work Voltage |
DC24-28 |
V |
|
|
5 |
Max Gain |
50 |
dB |
|
|
6 |
Flatness |
±1 |
dB |
|
|
7 |
Max Current |
6 |
A |
|
|
8 |
Output VSWR |
≤1.5 |
|
|
|
9 |
Output Connector |
SMA/F 50Ω |
|
Customized |
|
10 |
Power Amplifier Efficiency |
45 |
|
when Max Output |
|
11 |
Switch Control |
high low |
V |
0V off /0.6 on |
|
12 |
Standing Wave Protection |
OK |
|
|
|
13 |
Temperature Protection |
75° |
℃ |
|
|
14 |
Size |
130*55*24 |
mm |
|
|
15 |
Weight |
0.31 |
Kg |
|
3. Product Feature
*High power 100W convenient for large signal jammer
* GaN solution more stable and lower temperature operate
* Can cut drone image channel of DJI in 3-5 second

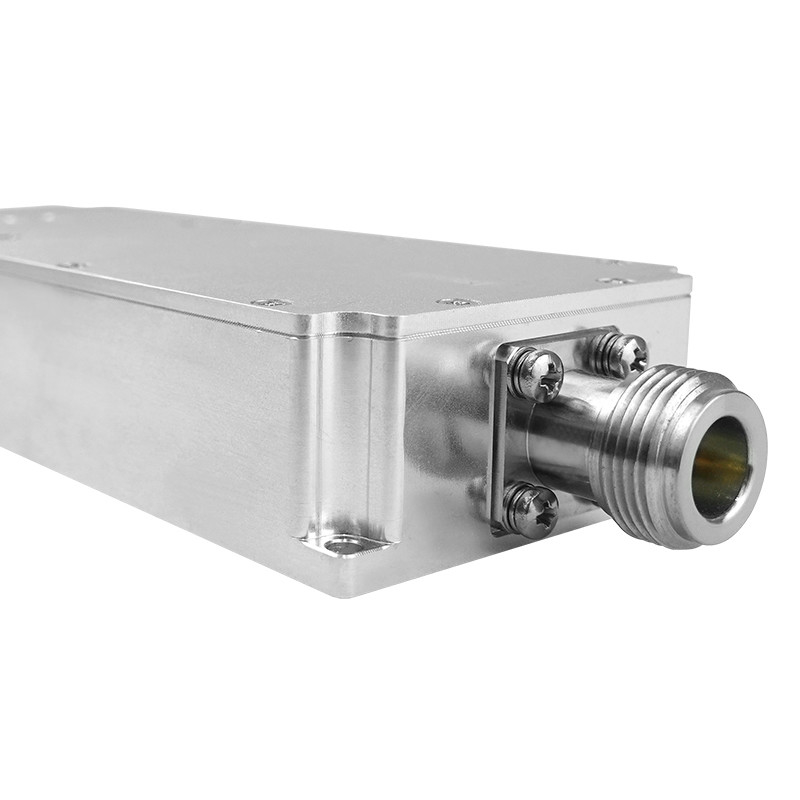

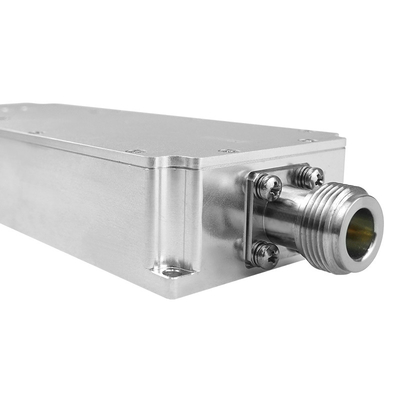

* N type connector The output is relatively stable

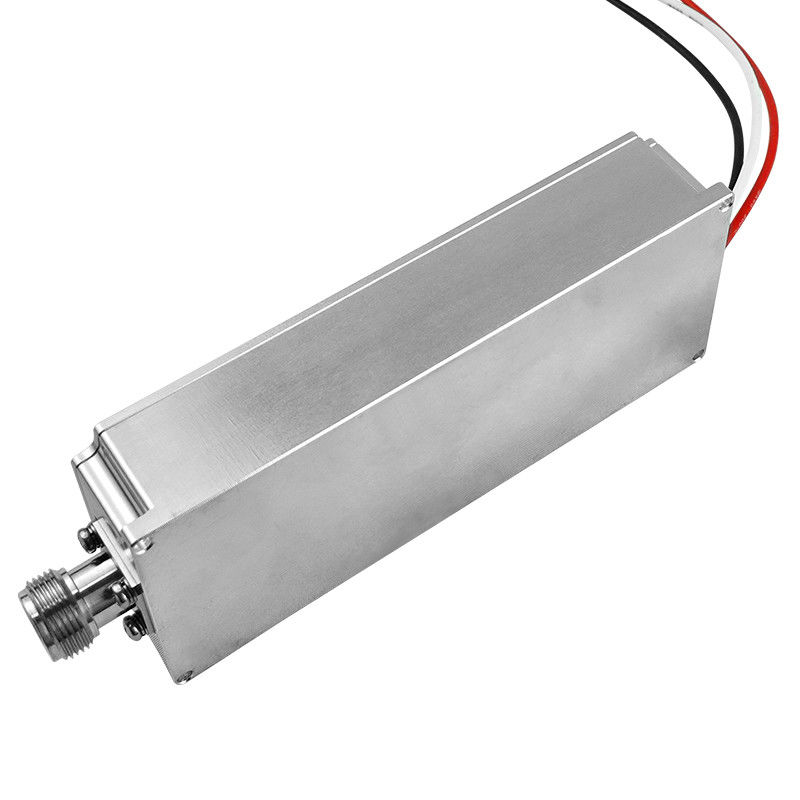

* Durable aluminum alloy housing, waterproof, dustproof and heat resistant
* Small size and light weight, also suitable for portable anti drone equipment
* 300MHz band width
4. Application
Offices, board meetings, conference rooms, seminars, libraries, cinemas, places of worship, public transportation, concert halls, restaurants, educational institutions, prisons, etc.

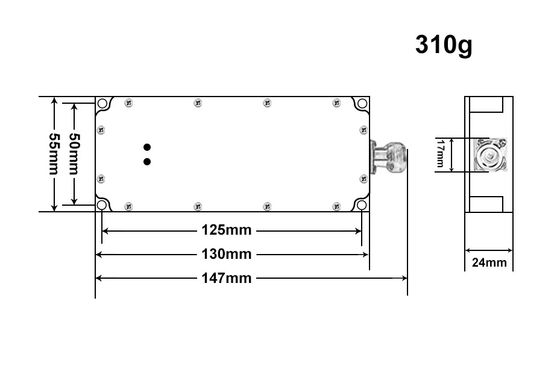

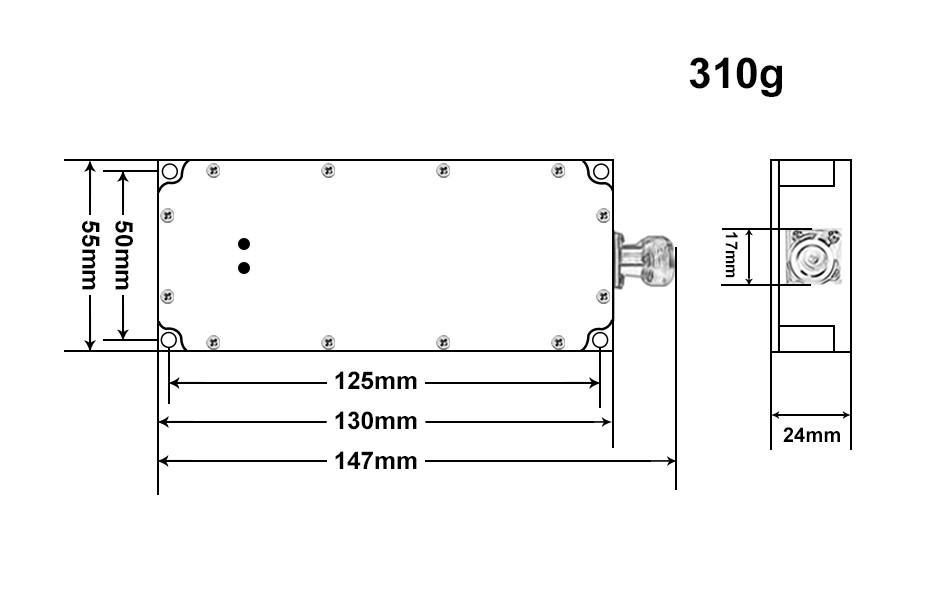

5.Packing and size
