| Place of Origin: | China |
|---|---|
| Brand Name: | TeXin |
| Certification: | CE ISO |
| Model Number: | TX-antenna100W |
| Minimum Order Quantity: | 2 |
| Price: | negotiated |
| Packaging Details: | Exported 5 layer K=K kraft paper Carton |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal,L/C,D/A,D/P, Etc. |
| Supply Ability: | 5000pcs/month |
| Type: | Omni Antenna | Frequency Range: | 1550-1650MHz |
|---|---|---|---|
| Size: | 129x179mm | Weight: | 298g |
| Gain: | 8dBi | Polarization: | Vertical |
| Max Input Power: | 100W | Material: | Fiberglass |
| Color: | White | ||
| Highlight: | 1200sqm Mobile Signal Jammer,50m Mobile Signal Jammer,894MHz Mobile Phone WiFi Signal |
||

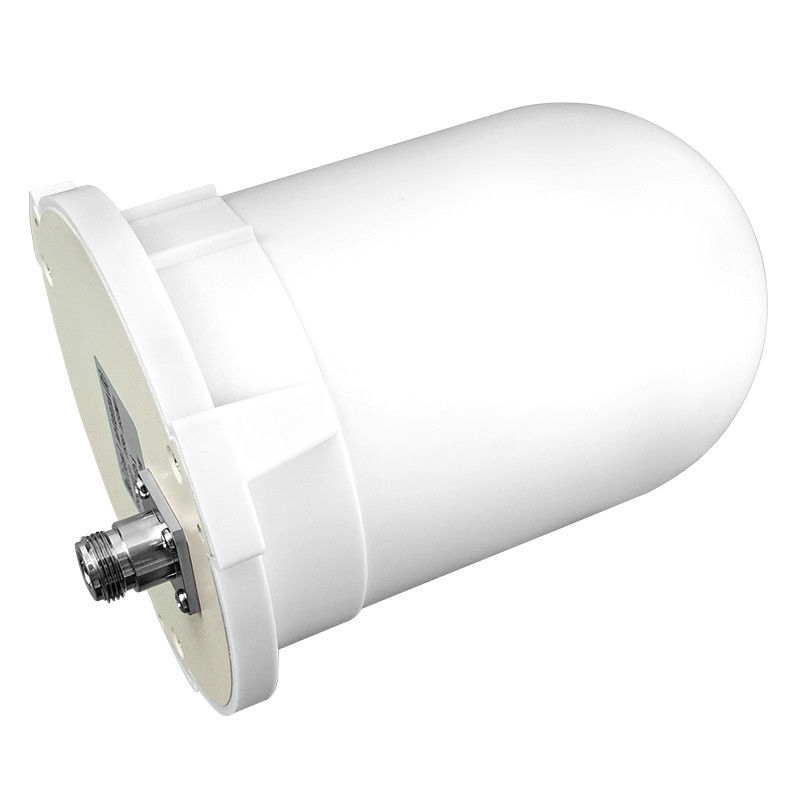

High Gain 1550-1650MHz 100W Helical Omni Antenna For outdoor
This outdoor high-gain spiral omnidirectional antenna has an operating frequency range of 1550 - 1650MHz and a maximum power of 100W. It is designed for outdoor environments and can meet various outdoor communication and signal transmission needs, providing stable and efficient signal coverage. The spiral omnidirectional design can achieve 360-degree signal coverage without the need for precise alignment of the signal source, greatly improving the convenience of installation and use, and can flexibly respond to signal transmission needs in different directions in complex outdoor environments. It can be used in outdoor wireless base stations, relay stations, and other communication facilities to enhance signal coverage, improve communication quality, and ensure long-distance data transmission and voice communication.
Product specification
| Electrical Specifications | |
| Frequency Range | 1550-1650MHz |
| Gain | 8dBi |
| VSWR | <1.5 |
| Polarization | Vertical |
| Non-circularity | ±2dB |
| Input lmpedance | 50Ω |
| Max Input Power | 100W |
| Connector | N Female |
| Mechanical Specifications | |
| Dimensions | φ129x179mm |
| Weight | 298g |
| Radome Material | Fiberglass |
| Radome Color | White |
Product feature
1. Omni directional antenna
2. High gain 8dbi
3. 360-degree signal coverage
4. High power-bearing capacity 100W
Application scenario
1. Outdoor AP
2. Communication base
3. wireless module
4. Wireless radio station
FAQ
1. Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here
2. MOQ?
1 to 100pcs
3. Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4. How to proceed with an order?
A. Let us know your requirements and product application through inquiry on Alibaba website B. We quote according to your specific needs C. Customers agree with the quotation and make the payment
5. What to do if I receive defective products?
Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please share a photo or video of the defective product to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.
