| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-JZTC01 |
| Document: | Anti Drone product-TeXin.pptx |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable Case or Box or Customized |
| Delivery Time: | 2 work day |
| Payment Terms: | T/T,Paypal,L/C,D/A,D/P, Etc. |
| Supply Ability: | 100,000pcs/month |
| Brand: | TX | Product Name: | TX Ultra-long-range 10KM Full-band Base Station Drone Detection Networkable Outdoor Use |
|---|---|---|---|
| Material: | ABS Plastic | Weight: | 20g |
| Product Size: | 40*50mm | ||
| Highlight: | wireless camera detector,wifi signal strength detector |
||
TX ultra-long-range 10KM full-band base station drone detection Networkable Outdoor use
TX-JZTC01 is a wireless passive automatic detection system that supports 360 degree omnidirectional detection coverage, with advanced warning, black and white name recognition, ID recognition, and linkage automatic strike support for UAV defense.
Adopting adaptive drone protocol control technology, deeply analyzing drone signals, identifying the unique ID of each drone, and accurately identifying drones. For some DJI models, the pilot position and return point coordinates can be obtained.
Feature
1. Super strong detection distance over 10km
2. Intelligent management technology, can automatically add to the whitelist and blacklist
3.Automatically strike after detection, capable of striking 200 aircraft at a time
4. High sensitivity, precise hitting, all-round protection
5. Ability to update equipment online and conduct in-depth analysis of different types of drones to identify unique IDs
Specification
| Detection range | 10km(Good radio environment) |
| Detection frequency bands | 900Mhz,2.4Ghz,5.8Ghz |
| Accurate identification | Accurate identification of drone models and unique electronic fingerprints, simultaneous identification of ≥ 220 different drone brands and corresponding ID numbers (identity authentication), and identification of drone positions and remote control positions (some aircraft) |
| Detection angle | 360° |
| Direction finding accuracy(exclude DJI) | Hover 3 °, lateral flight 8-9 ° |
| Number of drones detected simultaneously | ≥60 |
| Position accuracy(DJI) | Positioning error<5 meters |
| Minimum detection altitude | ≤0meter |
| Detection success rate | ≥99% |
| Weight | 12kg |

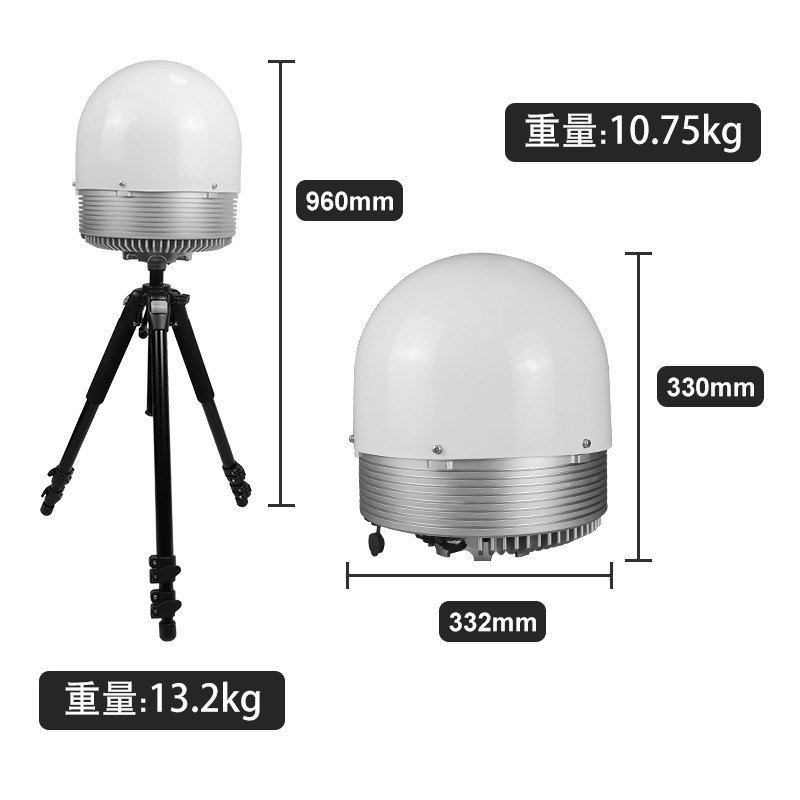

| Volume | 330mm x 330mm x 330mm |
| Protection grade | IP65 |
| power dissipation | 80w |
Application
1.Outdoors safety protection ,when the outdoors working the detection can locate the drone
2.Urban security management that preventing foreign drones from endangering the safety of urban populations
3.Airport Security :Preventing foreign drones from interfering with aircraft routes
Packing list :
Hobit S1 Host
Antenna x1
Screwsx4,Support fixed connectors
Gps module x1
Power line x1
Network cable x1
