| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Document: | Factory Introduce.pdf |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Universal package |
| Delivery Time: | 2 work days |
| Payment Terms: | T/T,Paypal,L/C,D/A,D/P,Etc. |
| Supply Ability: | 200,000pcs/per month |
| Name: | OMNI Antenna | Frequency: | 3000-3200MHz |
|---|---|---|---|
| Power: | 50W | Operational Humidity(％): | 10- 95 |
| Radome Color: | Black | Operating Temperature(ºC): | -40～55 º |
| Installution Method: | Machine Installation | Material: | Copper |
| Gain: | 3dBi | ||
| Highlight: | low noise vco,voltage controlled sine wave oscillator |
||

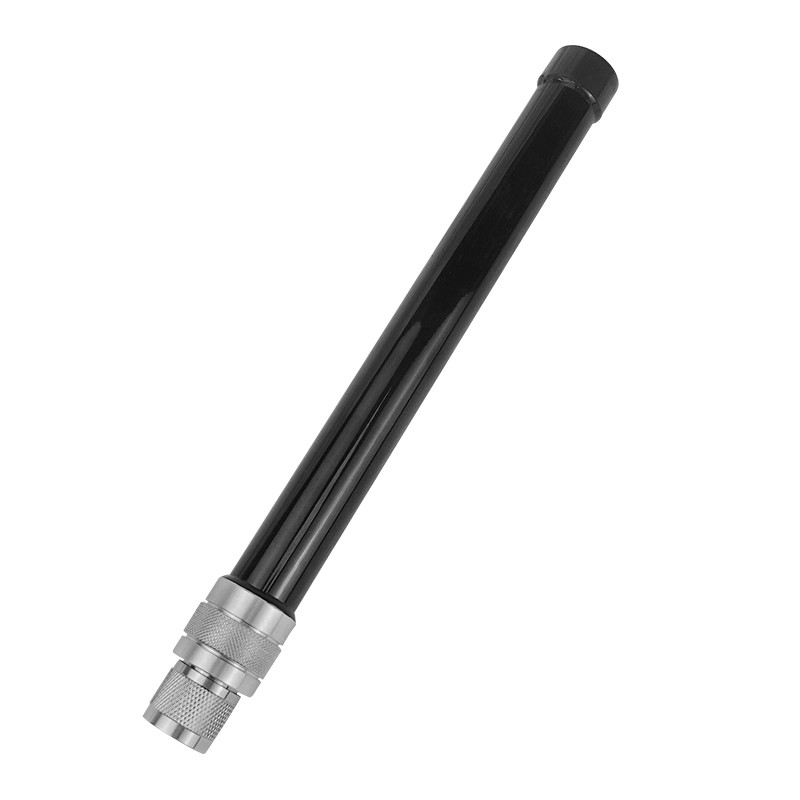

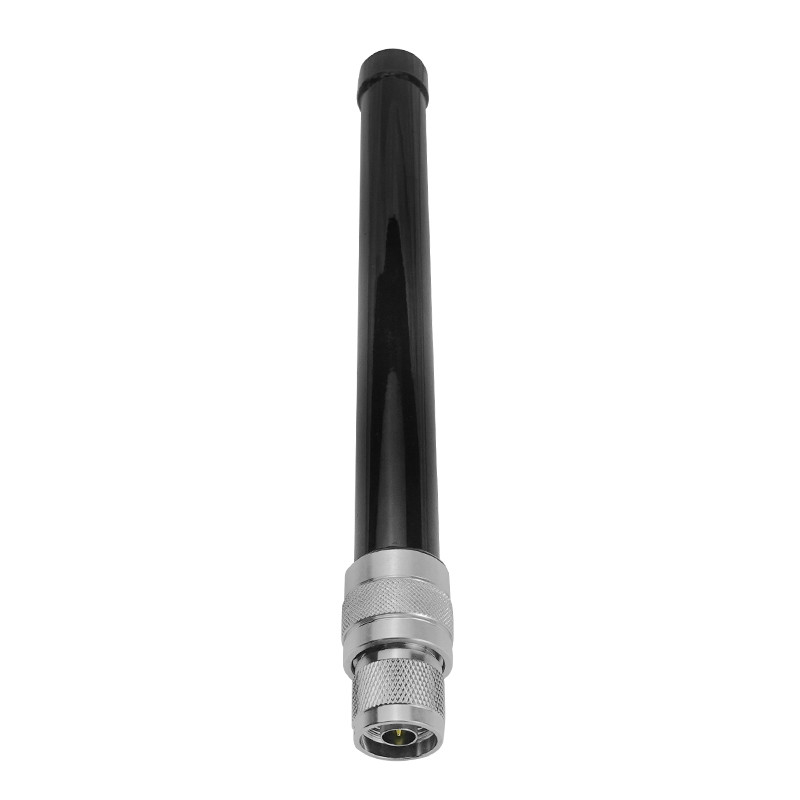

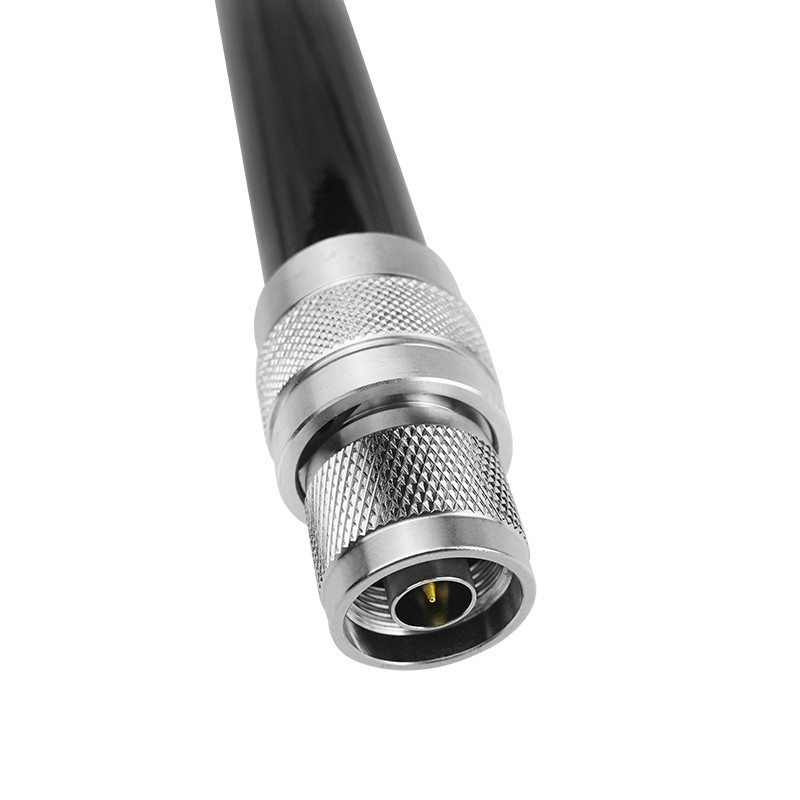

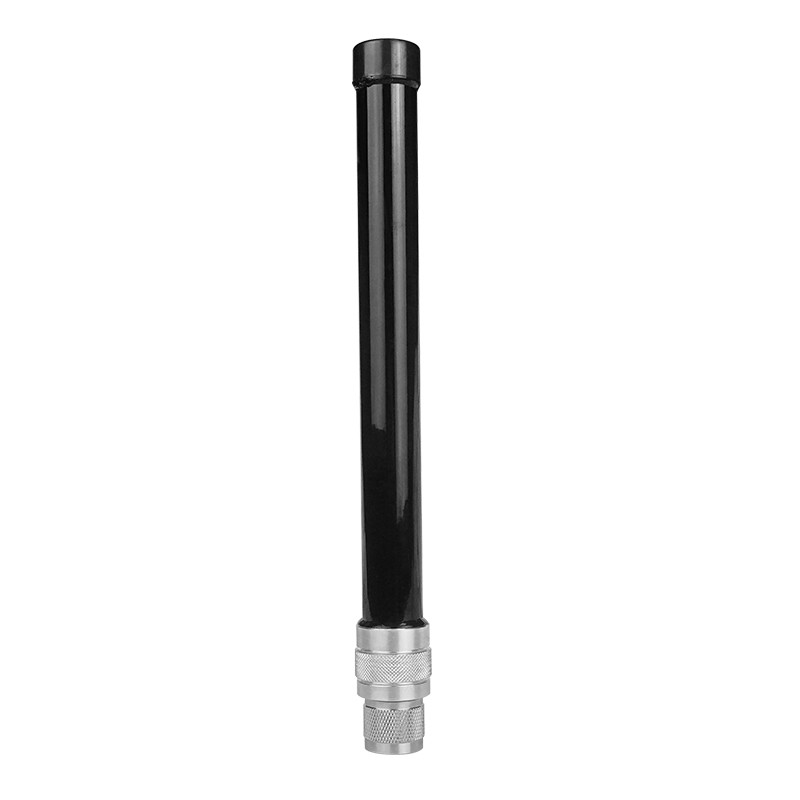

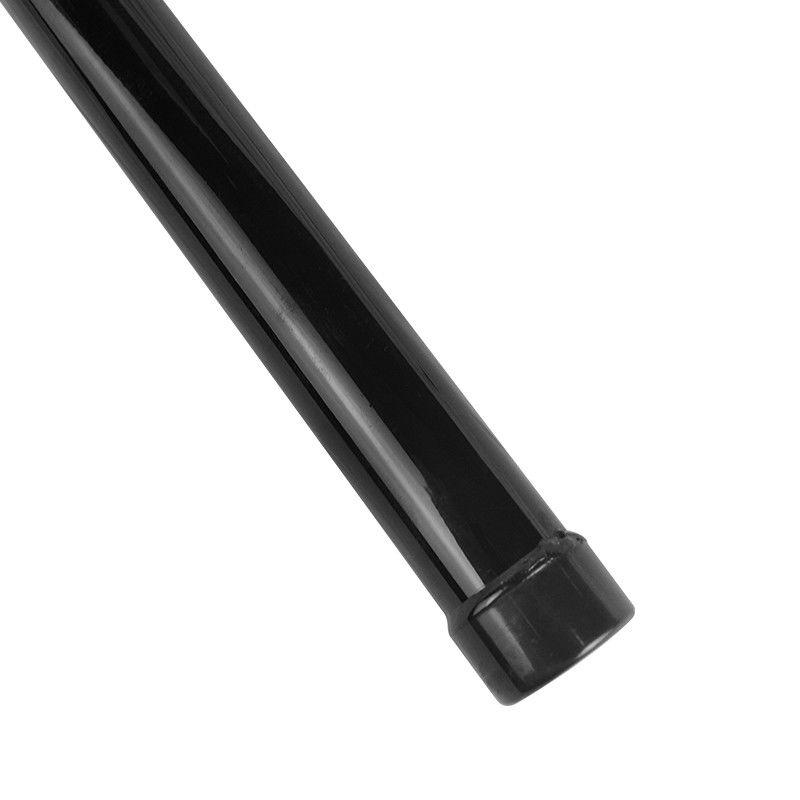

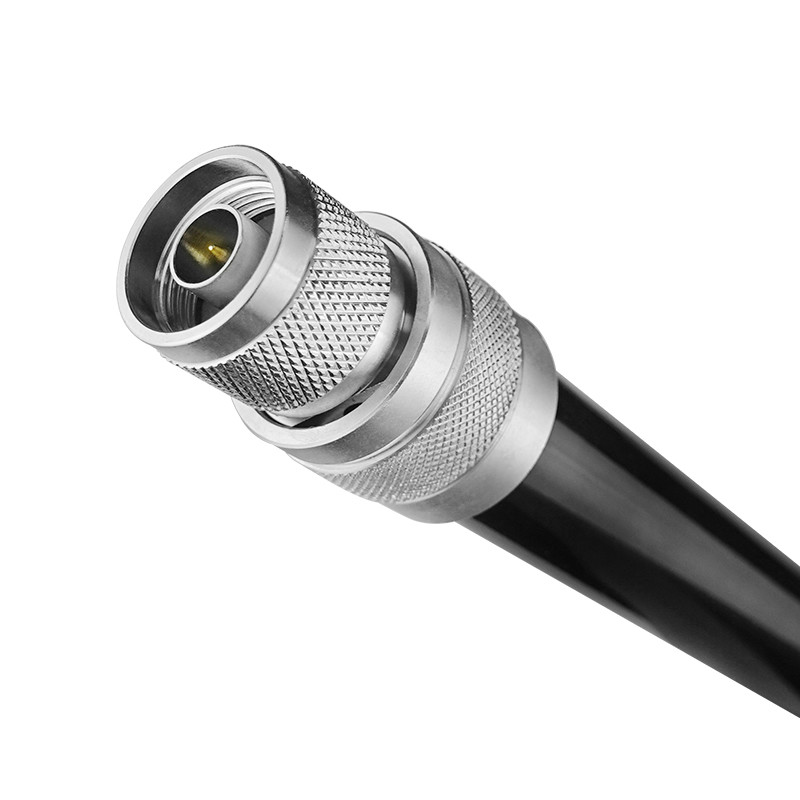

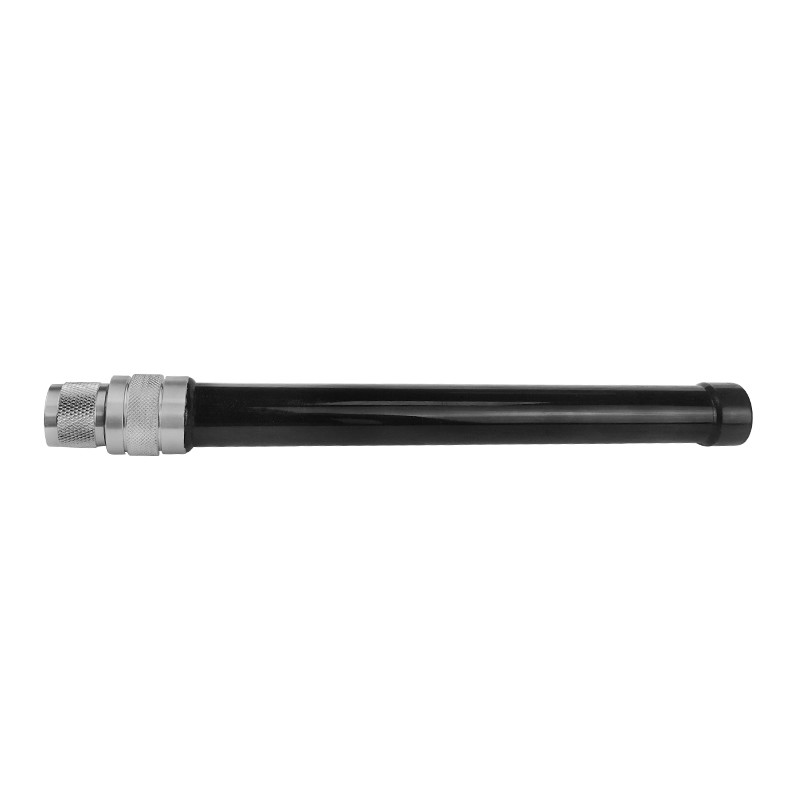

All copper material weight 109g 3G 4G GPS cell phone jammer omni antenna
This is kind handheld mini size omnidirectional antenna ,this antenna all copper coverage inside that has high performance of transmitting signals.External waterproof design, can be used for outdoor communication, can also be used for small mobile signal shielding equipment.The gain and frequency band of the product can be customized according to the actual usage.
Features:
*Gain support 3.5dbi 5dbi 8dbi
*Frequency band 300MHz 400MHz 600MHz offered
*Light weight only 109g it is very easy to carry
*All copper full coverage the signal enhenced
Antenna Application:
1. Wireless communication field:It can received signal from everywhere
2. Broadcasting and Television Industry:the antenna also use in television field that bring convient for our daily life
3. Industrial automation field:The application of omnidirectional antennas is also becoming more and more widespread. On industrial production lines, various sensors and equipment require stable and reliable signal transmission to ensure the smooth progress of the production process.
4. Industrial Routers:can booster signal
| █Electrical Specifications | |
| FrequencyRange | 800-1620MHz |
| Gain(dBi) | 3.5±0.5dBi |
| VSWR | ≤2 |
| Polarization | Vertical |
|
Horizontal Beamwidth(0º) Vertical Beamwidth(0º) |
360º 55±5º |
| ovality(dB) | ≤±2dB |
| Input Impedance(Ω) | 50Ω |
| Maximum input power(W) | 50W |
| Inpur connector type | N |
| █Mechanical Specifications | |
| Dimensionsmm(Height/Width/Depth) | ɸ115*140mm |
| Packing size(mm) | 230*9mm(20PCS) |
| Antenna weight(kg) | 109G |
| Rated Wind Velocity(m/s) | 31m/s |
| Operational Humidity(％) | 10- 95 |
| Radome Color | Black |
| Radome material | ABS |
| Operating temperature(ºC) | -40～55 º |
| Installution Method | Machine installation |
