| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Model Number: | TX-50W |
| Document: | Module -TeXin.pdf |
| Minimum Order Quantity: | 1 |
| Price: | 114-157 |
| Packaging Details: | Box with PE Foam |
| Delivery Time: | 2 Days |
| Payment Terms: | L/C, T/T, Paypal,etc. |
| Supply Ability: | 100000pcs/month |
| Name: | Anti Drone Jammer Module | Frequency: | 100-400MHz |
|---|---|---|---|
| Antenna: | Omin Antenna | Voltage: | 24-28V |
| Gain: | 47dbm | Size: | 53*139*19mm |
| Weight: | 263g | Material: | Aluminium |
| Chip: | LDMOS | Connector: | S-end |
| Guranteen: | 1 Year | Mount Hole: | 125*48 |
| Working Frequency: | (Customized) | Rf Distance: | 1-1.5km |
| Max Gain: | 45 | Packing: | Box |
| Frequency Bands: | 433MHz/915MHz/1.2G/1.5G | Out Put: | 50W |
| Jamming Distance: | Up To 500 Meters | ||
| Highlight: | mobile phone signal jammer,mobile network blocker,Anti Tracking USB GPS Blocker |
||
Light weight 100-400MHz 50W anti drone signal amplifier module
This is a radio frequency by an advanced VCO anti-drone jammer module. As usually, the jammer module's max frequency band is only 200 MHz. In order to meet the needs of the market, Shenzhen Texin Electronics has developed this jammer module with a bandwidth of more than 300 MHz. It is portable, installed, and easy to carry. There are many scenarios that can be used, like schools, governments, anti-violence organizations, and large entertainment venues that can protect our security and privacy effectively. For the price of one module, you can get the effects of two modules!
Parameter:
| 100-400MHz 50W RF Power Amplifier Specification | ||||
| No. | Item | Data | Unit | Notes |
| 1 | Frequency | 100-400 | MHZ | |
| 2 | Work Temperature | -20~+70 | ℃ | |
| 3 | Max Output Power | 50 | W | |
| 4 | Work Voltage | DC24 | V | |
| 5 | Max Gain | 45 | dB | |
| 6 | Flatness | ±3 | dB | |
| 7 | Max Current | 3 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | SMA/F 50Ω | Customized | |
| 10 | Power Amplifier Efficiency | 45 | when Max Output | |
| 11 | Switch Control | high low level current |
V | 0V off /0.6 on |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |

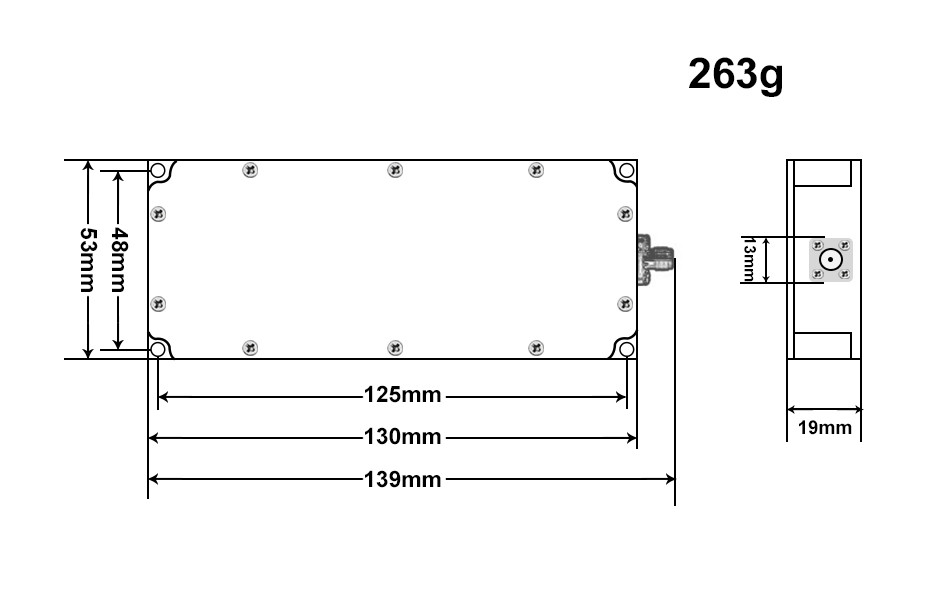

| 14 | Size | 53*139*19 | mm | |
| 15 | Weight | 0.263 | Kg | |
Features:
1. Stable current with bandwidth flat
2. The frequency band can reach 300MHz
3. Light weight 541g and both connector easy to use
4. support 24V-28V volatge to operate
5. ultra aluminum material made wihich high quality and strong heat dissipation

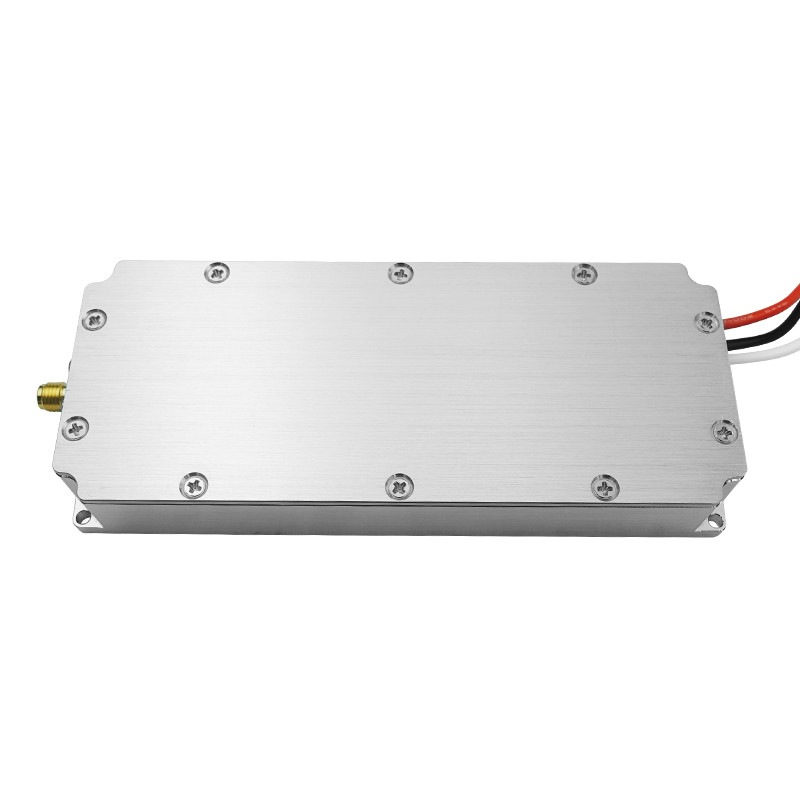

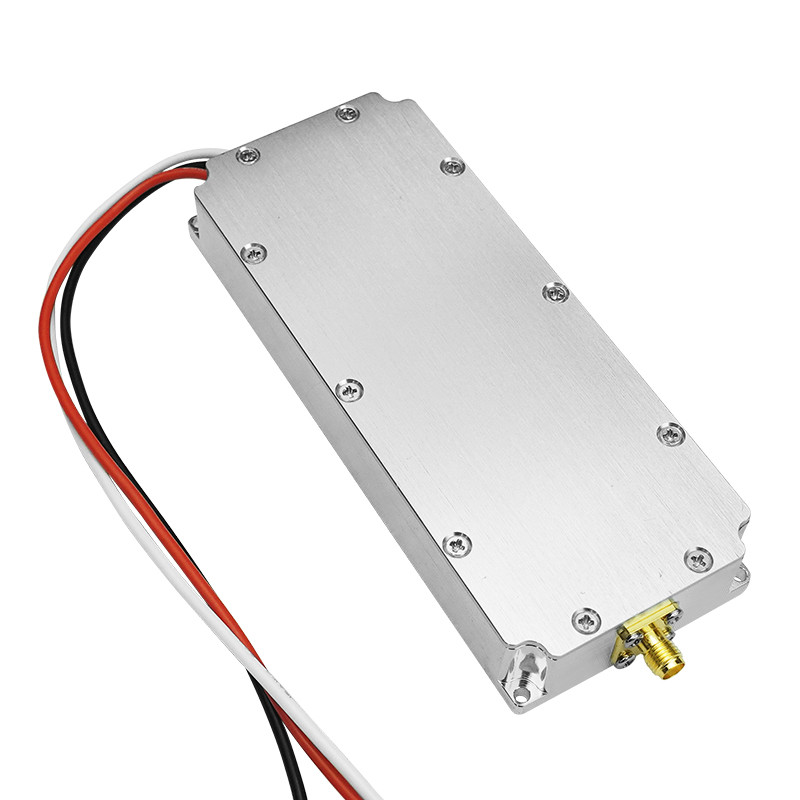

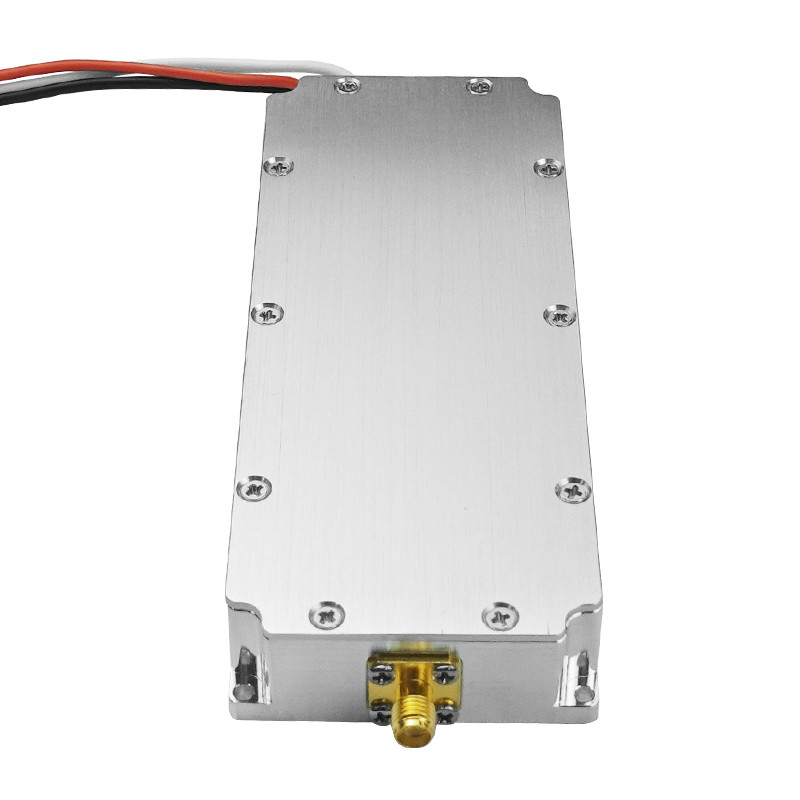

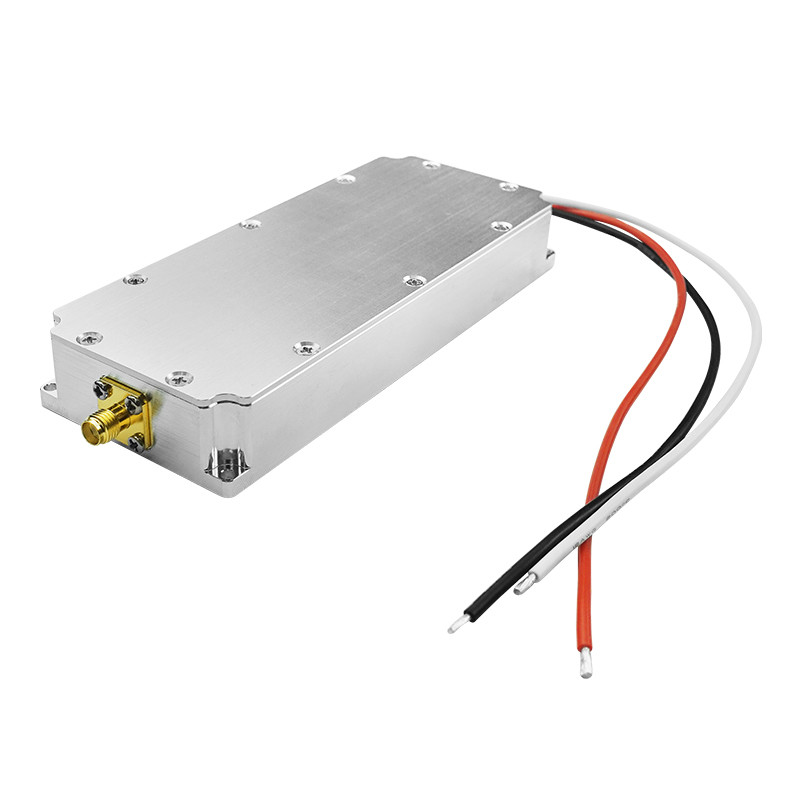

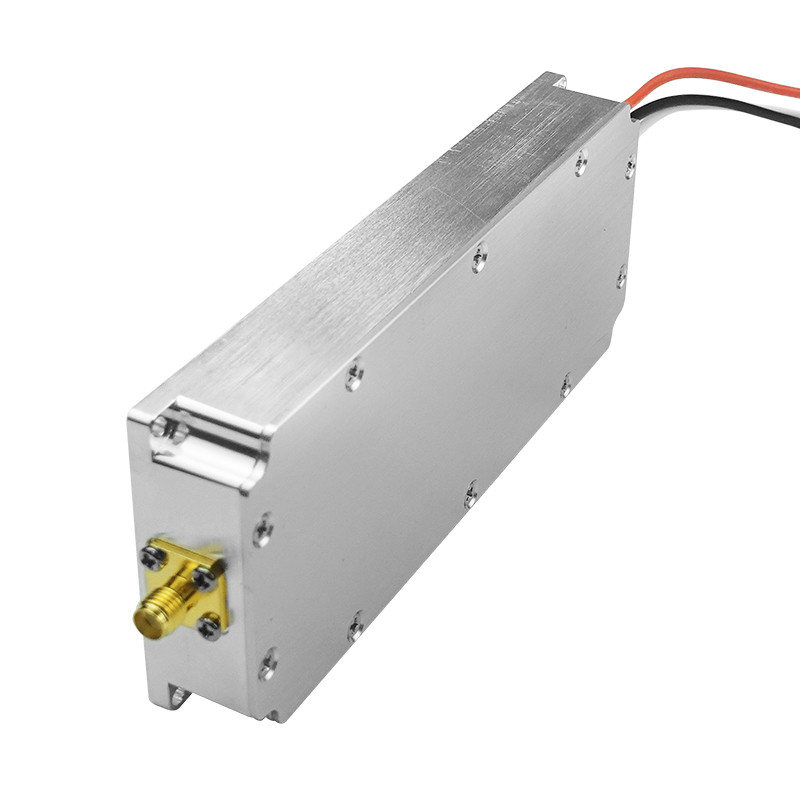

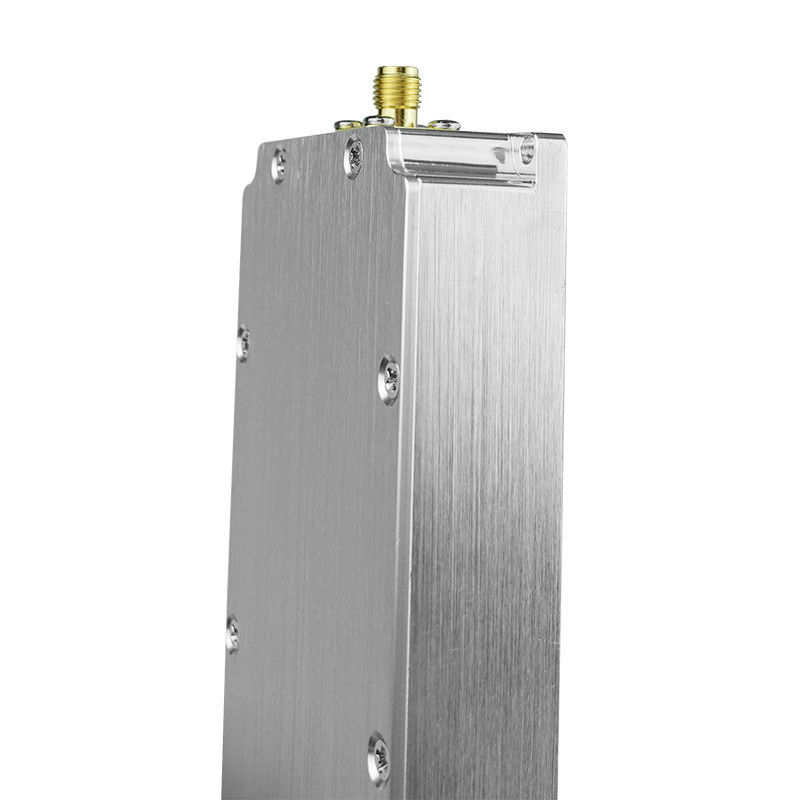

Detail pictures:
Advantages:
1. Improve air safety: effectively prevent unauthorized drones from entering specific areas and improve air safety levels.
2. Maintain social order: maintain social order and public safety in sensitive areas or large-scale events.
3. Reduce risk costs: reduce potential risks and losses caused by illegal drone flights.
4. Improve law enforcement efficiency: rapid response, precise control, and improved law enforcement efficiency.
Why choose us?
package
